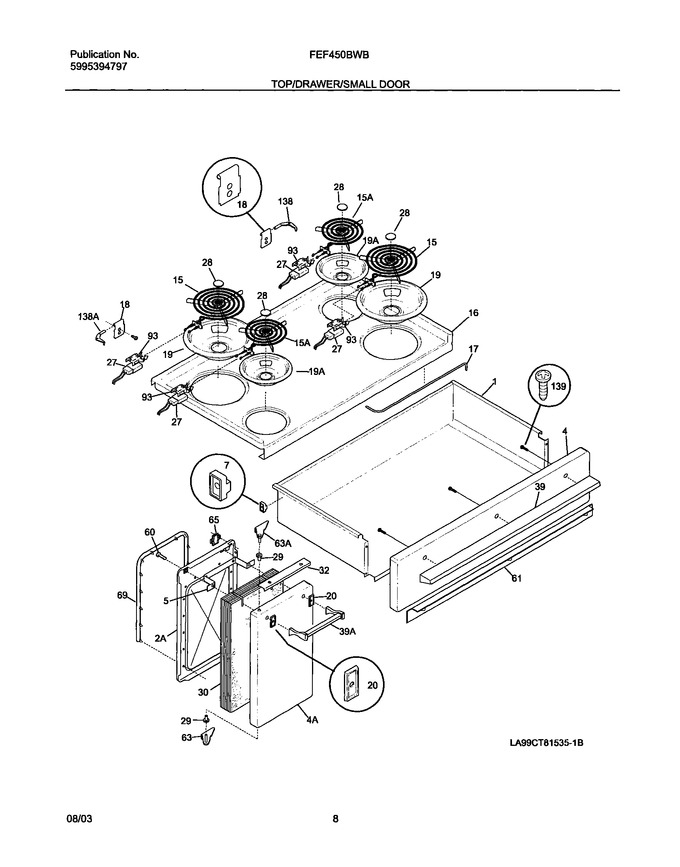

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3202108		Drawer-utility		Appelez-nous	-
4	08011980		Panel,drawer ,white ,front		Appelez-nous	-
5	318014500		Spacer,door Handle		Appelez-nous	-
7	5303326236		Guide,drawer		Appelez-nous	-
16	08011961		Panel,main Top ,white		Appelez-nous	-
17	3051554		Rod,support ,main Top Panel		Appelez-nous	-
18	318186400		Retainer,hinge Pin		Appelez-nous	-
19	A316222301		Pan,surface Element ,large ,black   (Replaces: 318067050)			Immediately	$ 12.53
20	3201572		Spacer-handle, (2)		Appelez-nous	-
28	5303301461		Medallion, Surface Element		Appelez-nous	-
29	318141800		Spacer,hinge Pin ,upper/lower				$ 14.49
30	318133722		Insulation,small Oven Door		Appelez-nous	-
39	318185901		Handle,drawer ,black		Appelez-nous	-
60	5303323139		Screw,10-24 X 0.906				$ 13.46
61	318107700		Toeplate		Appelez-nous	-
63	318024508		Hinge,door ,lwr Small Oven ,lower				$ 133.72
65	318090220		Strike-door				$ 57.04
69	318053300		Seal,door ,small Oven		Appelez-nous	-
93	318122500		Support,terminal Block ,(4)		Appelez-nous	-
138	5301315631		Pin,hinge ,rs Cooktop		Appelez-nous	-
139	5303311135		Screw-handle,8-32 X 3/4 ,(2)		Appelez-nous	-
19A	A316222201		Pan,surface Element ,small ,black   (Replaces: 318067040)			Immediately	$ 14.64
2A	318048211		Liner,inner Door ,small Oven		Appelez-nous	-
39A	318040603		Handle-door		Appelez-nous	-
4A	318009308		Panel-oven Door, White, Small		Appelez-nous	-
63A	318024509		Hinge,door ,upr Small Oven				$ 118.28
F138	3051658		Pin,hinge ,ls Cooktop		Appelez-nous	-
F15	316442301		Element,surface ,large/8 Inch ,2600 W ,240 V   (Replaces: 5303309001)			Immediately	$ 44.39
F15A	PS12-4BK		Element,surface ,small/6 Inch ,1500 W   (Replaces: 5303309000)			Immediately	$ 35.96
F27	318223420		Terminal Block,surface Element ,32`` ,orange Leads		Appelez-nous	-
F27	318223419		Terminal Block,surface Element ,24`` ,yellow Leads		Appelez-nous	-
F27	318223417		Terminal Block,surface Element ,22`` ,white Leads		Appelez-nous	-
F27	318223416		Terminal Block,surface Element ,27`` ,brown Leads		Appelez-nous	-
NI	5303321106		Plug-button				$ 11.60
NI	318086002		Washer,flat ,steel		Appelez-nous	-
NI	3051070		Screw,hex Washer Head ,10-24 X 0.438 ,special		Appelez-nous	-
NI	08002868		Screw 10 X 24 X 1/2				$ 14.18
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303317975		Screw,10 X 1/2		Appelez-nous	-
