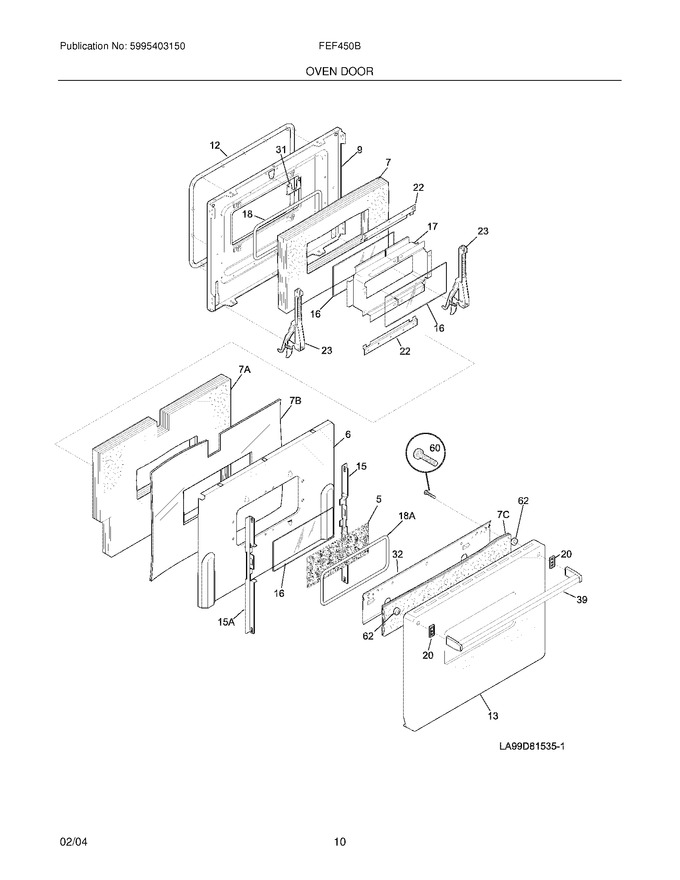

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	5303310508		Glass-oven Door,tinted ,inner		Appelez-nous	-
6	318057000		Panel,heat Deflector ,oven Door		Appelez-nous	-
7	318133706		Insulation,oven Door		Appelez-nous	-
9	5303320621		Liner-oven Door		Appelez-nous	-
12	318053103		Gasket,oven Door Seal			Immediately	$ 150.03
13	318009101		Panel-oven Door		Appelez-nous	-
15	318024010		Bracket,oven Glass Mtg ,rs		Appelez-nous	-
16	5303310533		Glass,oven Door ,6.50 X 15.50 ,inner ,heat Barrier				$ 220.55
17	318139000		Spacer,oven Door Glass ,inner Frame		Appelez-nous	-
18	5303310531		Gasket,door Glass Seal ,inner		Appelez-nous	-
20	3201572		Spacer-handle, (2)		Appelez-nous	-
22	5303310511		Bar,glass Retainer		Appelez-nous	-
23	318024700		Hinge,oven Door		Appelez-nous	-
31	5303310536		Latch,oven Door				$ 30.66
32	318057202		Panel,heat Deflector ,door Handle		Appelez-nous	-
39	318040604		Handle,door ,black ,oven		Appelez-nous	-
54	5303317975		Screw,10 X 1/2		Appelez-nous	-
60	5303307980		Screw,8-32 X 0.437			Immediately	$ 14.18
62	5303310504		Spacer,handle ,oven Door ,(2)		Appelez-nous	-
15A	318024011		Bracket,oven Glass Mtg ,ls		Appelez-nous	-
18A	318053203		Gasket,door Glass Seal ,outer				$ 57.54
7A	318133753		Insulation,oven Door ,cavity		Appelez-nous	-
7B	5304400472		Insulation,oven Door		Appelez-nous	-
7C	5305069001		Insulation,27x18.76x0.25 ,oven Door		Appelez-nous	-
NI	316221001		Label,anti-tip		Appelez-nous	-
NI	318086002		Washer,flat ,steel		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
