SELECT A DIAGRAM

01 - Gas Range


02 - Backguard


03 - Burner


04 - Body


05 - Top / Drawer


06 - Door

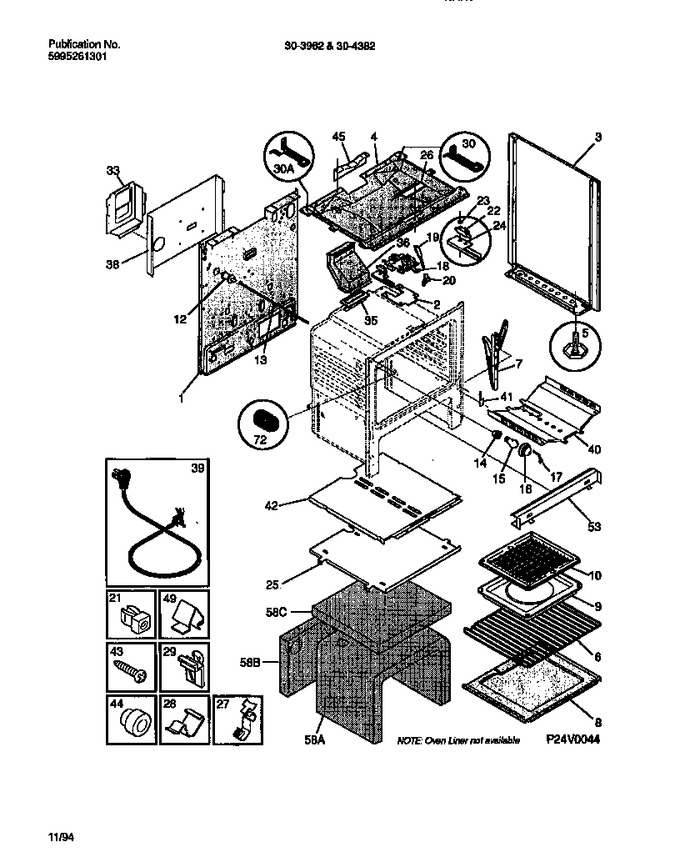

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316029405		Back-main		Appelez-nous	-
2	3131314		Shield-oven-top		Appelez-nous	-
3	5303269518		Panel-bodyside, White, Rh		Appelez-nous	-
4	316011905		Burner Box		Appelez-nous	-
5	5303203397		Screw-leveling				$ 14.49
6	5304531722		Rack-oven   (Replaces: 316067901)			Immediately	$ 51.05
7	316007002		Hinge-oven Door, (2)				$ 244.07
8	5303212540		Panel-oven Bottom		Appelez-nous	-
9	316073800		Pan-broiler		Appelez-nous	-
10	316073900		Insert-broiler Pan		Appelez-nous	-
12	316027702		Switch-oven Light		Appelez-nous	-
13	316026800		Rod-light Switch/door				$ 36.86
14	3014073		Socket-light/lamp, Oven		Appelez-nous	-
15	40A15		Light Bulb/lamp   (Replaces: 5303013071)			Immediately	$ 1.98
16	5304524341		Glass - Oven Light Lens   (Replaces: 08011086)			Immediately	$ 14.18
17	3204585		Retainer-glass		Appelez-nous	-
18	5303015453		Latch-door				$ 172.04
19	5303131357		Handle-latch				$ 37.33
20	3203218		Knob-latch		Appelez-nous	-
21	3014099		Spacer-bodyside, (8)				$ 3.62
22	5303269499		Switch-latch				$ 20.53
23	08067776		Fastener-push-on		Appelez-nous	-
24	3051413		Shield-latch		Appelez-nous	-
25	3131313		Shield-heat-lower		Appelez-nous	-
26	08067757		Cover Plate		Appelez-nous	-
27	5303284616		Clip-thermo Bulb				$ 9.86
28	3011813		Clip-wire				$ 14.79
29	3051162		Glide-drawer, Front			Immediately	$ 8.22
30	5303283574		Bracket-hinge, Main Top Rh		Appelez-nous	-
33	316014401		Shield, Rear Wall		Appelez-nous	-
35	08067965		Gasket-flue		Appelez-nous	-
36	5303272844		Flue		Appelez-nous	-
38	316035301		Shield-heat		Appelez-nous	-
39	5304534377		Cord-electric Power   (Replaces: 3202006)				$ 26.85
40	3200836		Shield-heat Baffle		Appelez-nous	-
41	3131570		Cover Hinge Cutout				$ 7.35
42	5303270104		Shield-bake-burner		Appelez-nous	-
43	316282700		Screw-oven Bottom, 8-18 X 1-7/16   (Replaces: 3131732)				$ 9.93
44	3131903		Bumper				$ 55.36
45	08068018		Shield-wire		Appelez-nous	-
49	3205821		Clip-spring Mtg   (Replaces: 3051124)			Immediately	$ 35.44
53	5303271047		Shield-main Front		Appelez-nous	-
72	5303285692		Cover-light/switch Rod		Appelez-nous	-
*54004	3200846		Fastener-edge Mtg		Appelez-nous	-
*54005	08067961		Fastener-power Cord		Appelez-nous	-
*54006	5303321319		Touch-up Paint-white   (Replaces: 5303305324)			Immediately	$ 13.46
18A	3131593		Shield-latch, Top (non-illustrated)		Appelez-nous	-
20A	08013188		Screw, Set, 10-24 X 3/16, Latch Knob		Appelez-nous	-
22A	08067978		Stud Spacer		Appelez-nous	-
30A	5303283575		Bracket-hinge, Main Top, Lh		Appelez-nous	-
39A	3131691		Harness-wiring, Main (non-illustrated)		Appelez-nous	-
3A	5303269519		Panel-bodyside, White, Lh (nono-illustrated)		Appelez-nous	-
3B	3200834		Shield-heat, Body Side		Appelez-nous	-
40A	5303288570		Screw-heat Shield, Hd Shldr Sqdr, 8-18 X 1/2		Appelez-nous	-
53A	08067973		Insulation, Main Front (non-illustrated)				$ 51.74
58A	3200833		Insulation, Oven Wrapper		Appelez-nous	-
58B	316054200		Insulation, Oven Back		Appelez-nous	-
58C	3131304		Insulation, Oven Top		Appelez-nous	-
5A	3934058		Anti-tip Kit (non-illustrated)				$ 98.75
5B	5303288460		Nut, T-type, Leveling Screw (non-illustreated)				$ 27.14
5C	316078906		Screw,anti-tip (4) (non-illustrated)		Appelez-nous	-
8A	316064600		Support-oven Bottom (non-illustrated)				$ 18.95
