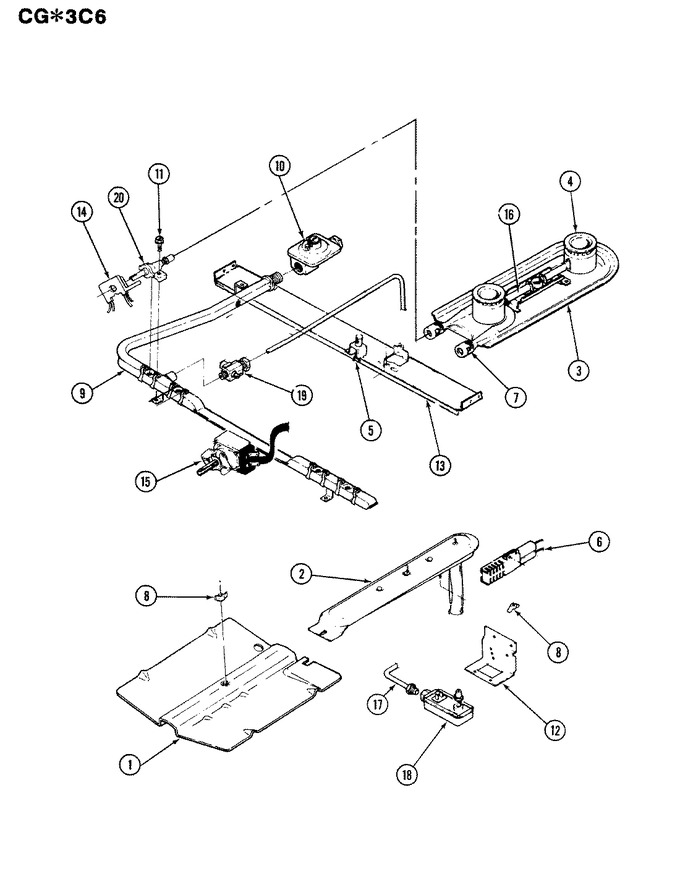

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3601F099-45		Baffle, Broil	1	Appelez-nous	-
2	7505P101-60		Burner	1	Appelez-nous	-
3	3412A004-23		Uni-burner Assy	1	Appelez-nous	-
4	4005F304-51		Cover, Wire	37	Appelez-nous	-
4	W10124350		Not Required Part Or See Note	1-36	Appelez-nous	-
4	7504P001-60		Cap, Burner	1	Appelez-nous	-
5	7432P008-60		Igniter, Top (lt)	1	Appelez-nous	-
5	7432P015-60		Igniter, Top Burner	1			$ 53.77
6	12400035		Igniter Bake   (Replaces: 7432P062-60)	37		Immediately	$ 60.44
6	WP7711P135-60		Knob, Valve   (Replaces: 7711P151-60)	1			$ 25.06
6	12400035		Igniter, Bake Burner   (Replaces: 7432P052-60)	1-36		Immediately	$ 60.44
6	7711P154-60		Knob, Therm	1			$ 21.47
7	1555222		Nut, Loxit (3/16``)	1	Appelez-nous	-
7	3411F004-34		Mixer, Air	1	Appelez-nous	-
7	1555251		Nut, Loxit (3/8``)	1	Appelez-nous	-
7	7431P006-60		Module, Spark	1	Appelez-nous	-
8	7103P030-60		Nut, Wing	1			$ 6.37
8	1555258		3/8`` Nut & Ferrule	1	Appelez-nous	-
9	W10124350		Not Required Part Or See Note	1-36	Appelez-nous	-
9	3830F006-45		Raceway Wire	37	Appelez-nous	-
9	7513P043-60		Pipe, Manifold----na	1	Appelez-nous	-
10	7510P002-60		Regulator, Pressure	1	Appelez-nous	-
11	7101P043-60		Screw, Control Valve	1	Appelez-nous	-
12	3807F120-34		Support	1	Appelez-nous	-
13	3807F221-80		Support, Top Burner	1	Appelez-nous	-
14	WP7403P190-60		Switch, Top Burner   (Replaces: 7403P041-60)	1			$ 118.82
15	7515P008-60		Thermostat	1	Appelez-nous	-
16	7506P006-60		Tube, Flash	1	Appelez-nous	-
17	0931202		3/16 X 56 Tubing	1	Appelez-nous	-
17	Y0936102		3/8 X 72 Tubing	1	Appelez-nous	-
18	7501P017-60		Valve, Oven	1	Appelez-nous	-
19	7502P002-60		Valve, Shut Off	1	Appelez-nous	-
20	7502P109-60		Valve, Top Burner	29	Appelez-nous	-
20	7502P016-60		Valve, Top Burner	1-28	Appelez-nous	-
