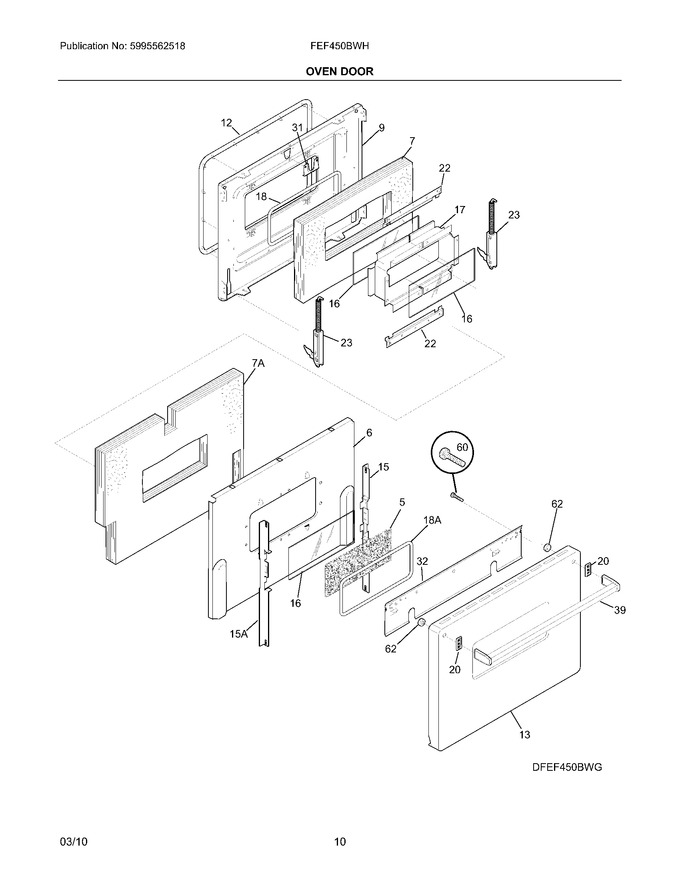

09 - Oven Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	318381302		Glass-oven Door,front				$ 45.31
6	318057005		Panel,heat Deflector ,oven Door		Appelez-nous	-
7	318285021		Insulation,cavity ,oven Door				$ 61.85
9	318156904		Door,inner		Appelez-nous	-
12	318053103		Gasket,oven Door Seal			Immediately	$ 150.03
13	318009126		Panel,oven Door ,white ,exterior		Appelez-nous	-
15	318024010		Bracket,oven Glass Mtg ,rs		Appelez-nous	-
16	5303310533		Glass,oven Door ,6.50 X 15.50 ,inner ,heat Barrier				$ 220.55
17	318139001		Spacer,oven Door Glass ,inner Frame				$ 44.26
18	318293500		Gasket,door Glass Seal				$ 31.61
20	3201572		Spacer-handle, (2)		Appelez-nous	-
22	5303310511		Bar,glass Retainer		Appelez-nous	-
23	318567103		Hinge,door ,upper Oven ,(2)		Appelez-nous	-
31	5303310536		Latch,oven Door				$ 30.66
32	318057204		Deflector,handle		Appelez-nous	-
39	318040604		Handle,door ,black ,oven		Appelez-nous	-
60	5303307980		Screw,8-32 X 0.437 ,(8)			Immediately	$ 14.18
62	5303310504		Spacer,(2)		Appelez-nous	-
15A	318024011		Bracket,oven Glass Mtg ,ls		Appelez-nous	-
18A	318053203		Gasket,door Glass Seal ,outer				$ 57.54
7A	318362166		Insulation,door ,sides		Appelez-nous	-
NI	3201899		Washer,flat		Appelez-nous	-
NI	316221001		Label,anti-tip		Appelez-nous	-
NI	318086002		Washer,flat ,steel		Appelez-nous	-
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
