SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door/drawer
04 - Gas Controls
New Model Search:

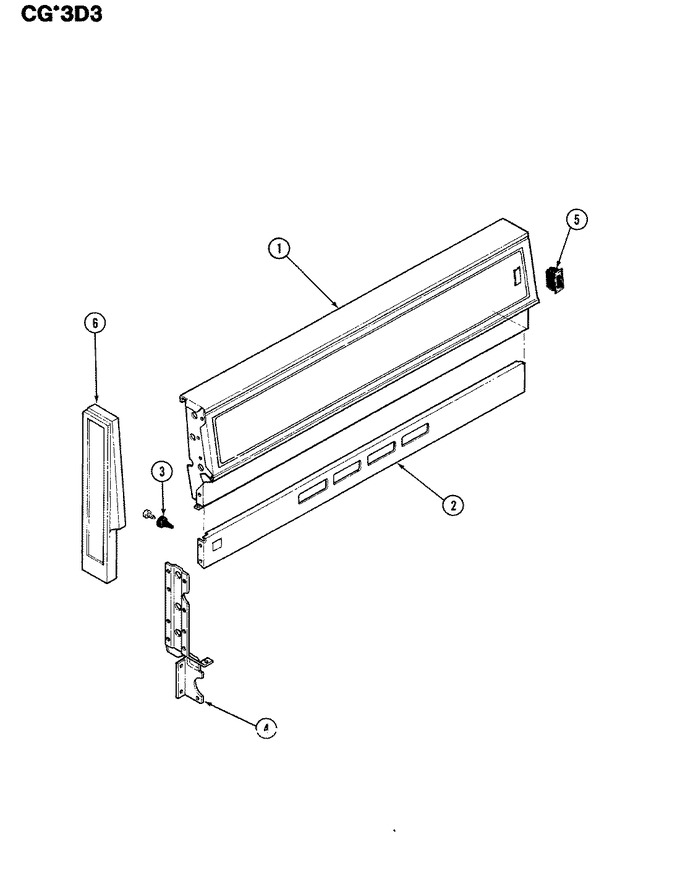

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7103P053-60 | Nut, Push-on End Cap | 1 |
|
- | ||||
| 1 | 3601F063-51 | Baffle Flue | 1 |
|
- | ||||
| 1 | 2601W299-81 | Panel Bkgd Wht | 1 |
|
- | ||||
| 2 | 2620W018-00 | Panel, Bkgd Lower | 1 |
|
- | ||||
| 3 | 8010P069-60 | Spacer, Hinge (main Top) | 1 |
|
$ 8.57 | ||||
| 4 | 3807F349-51 | Support, Bkgd End Rt | 1 |
|
- | ||||
| 4 | 3807F348-51 | Support, Bkgd End Lf | 1 |
|
- | ||||
| 5 | 7703P234-60 | Trim Bkgd Insert | 1 |
|
- | ||||
| 5 | 7403P067-60 | Switch, Rocker (blk) (Replaces: 7403P102-60) | 1 |
|
$ 91.35 | ||||
| 6 | 7726P020-60 | End Cap, Backguard (rt-blk) | 1 |
|
- | ||||
| 6 | 7726P009-60 | End Cap, Backguard (lt-blk) | 1 |
|
- |
