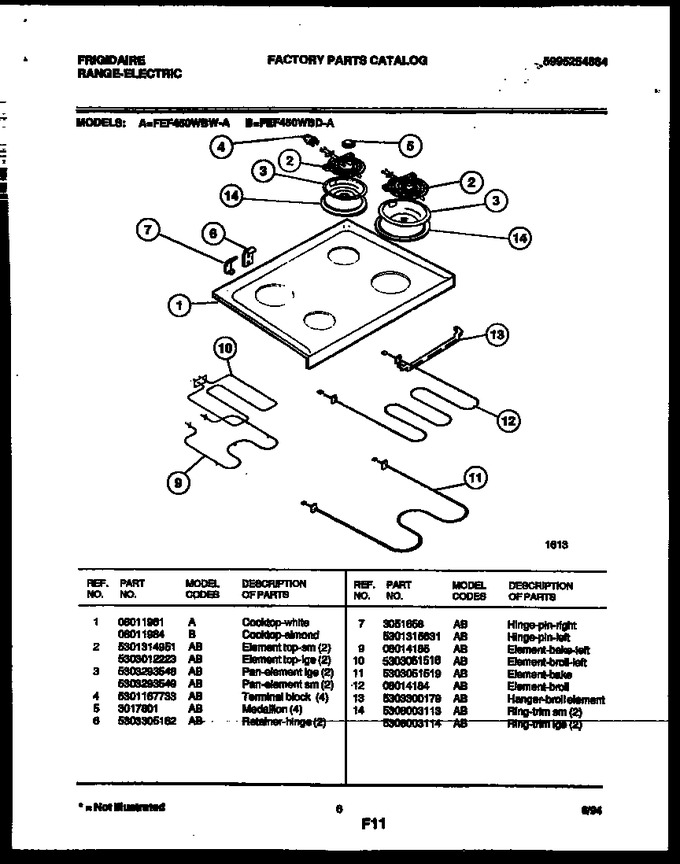

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08011961 | Cooktop (white) |
|
- | |||||
| 2 | 5301314951 | Element Top-sm (2) |
|
- | |||||
| 3 | 5303293548 | Pan-element Lge (2) |
|
- | |||||
| 4 | 5303935058 | Terminal Block (4) (Replaces: 5301167733) |
|
Immediately | $ 13.81 | ||||
| 5 | 3017801 | Medallion (4) |
|
- | |||||
| 6 | 5303305162 | Retainer-hinge (2) |
|
- | |||||
| 7 | 3051658 | Hinge-pin-right |
|
- | |||||
| 9 | 08014185 | Element-bake-left |
|
- | |||||
| 10 | 5303051516 | Element-broil-left |
|
$ 189.23 | |||||
| 11 | 5303051519 | Element-bake |
|
Immediately | $ 44.70 | ||||
| 12 | 08014184 | Element-broil |
|
- | |||||
| 13 | 5303300179 | Hanger-broil Element |
|
- | |||||
| 14 | 5308003113 | Ring - Trim Sm (2) |
|
- | |||||
| 14A | 5308003114 | Ring - Trim Lge (2) |
|
- | |||||
| 2A | 316442301 | Element-top Lge (2) (Replaces: 5303012223) |
|
Immediately | $ 44.39 | ||||
| 3A | 5303293549 | Pan-element Sm (2) |
|
- | |||||
| 7A | 5301315631 | Hinge-pin-left |
|
- |
