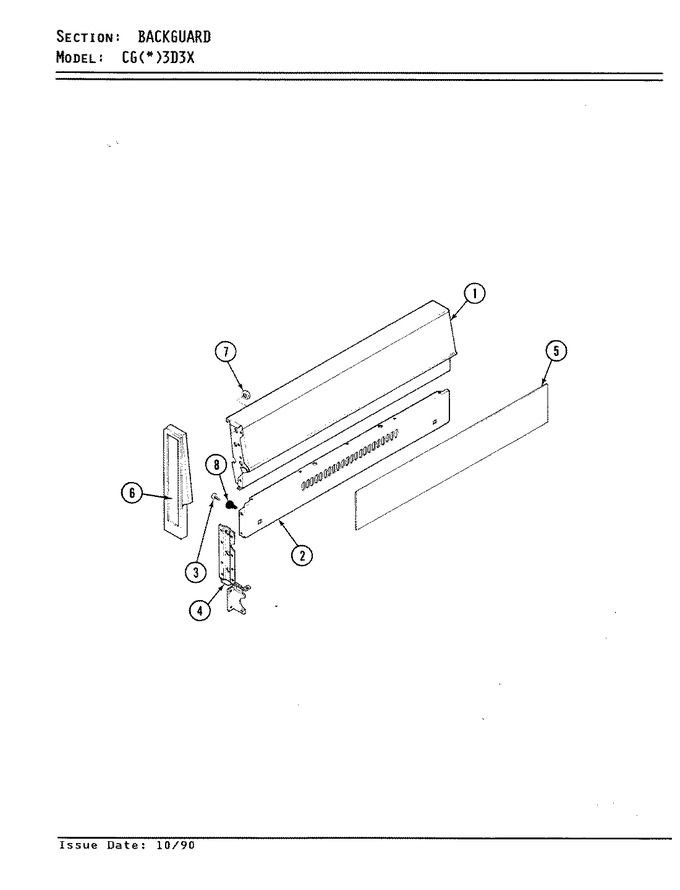

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2601W299-81		Panel Bkgd Wht	1	Appelez-nous	-
2	WP7101P126-60		Screw   (Replaces: 7101P058-60)	1		Immediately	$ 6.85
2	2620W053-23		Panel, Lower Bkgd. (blk)	1	Appelez-nous	-
3	W11233072		Screw (zinc)   (Replaces: 7101P041-60)	1		Immediately	$ 12.62
4	WPW10068250		Screw   (Replaces: 7101P074-60)	1			$ 3.66
4	WP7101P126-60		Screw   (Replaces: 7101P058-60)	1		Immediately	$ 6.85
4	3807F349-51		Support, Bkgd End Rt	1	Appelez-nous	-
4	3807F348-51		Support, Bkgd End Lf	1	Appelez-nous	-
5	7703P234-60		Trim Bkgd Insert	1	Appelez-nous	-
6	7726P020-60		End Cap, Backguard (rt-blk)	1	Appelez-nous	-
6	7726P009-60		End Cap, Backguard (lt-blk)	1	Appelez-nous	-
7	7103P053-60		Nut, Push-on End Cap	1	Appelez-nous	-
7	7101P086-60		Screw, 8-32 X 1/2	1	Appelez-nous	-
8	8010P069-60		Spacer, Hinge (main Top)	1			$ 8.57
