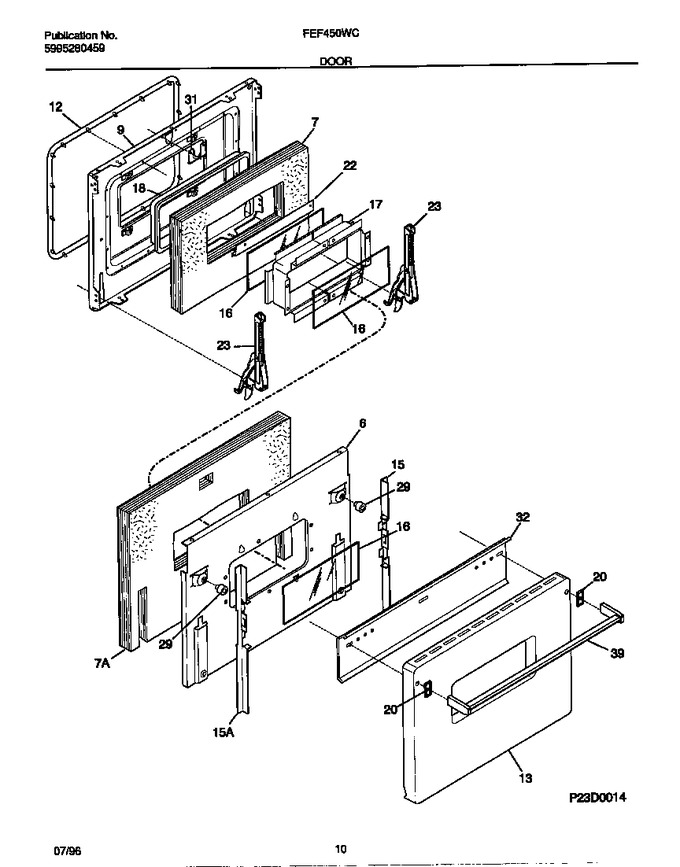

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	318057000		Baffle-door		Appelez-nous	-
7	5303310532		Insulation-door		Appelez-nous	-
7	318106000		Insulation-door		Appelez-nous	-
9	318048700		Liner-oven Door		Appelez-nous	-
12	318053103		Seal-oven Door   (Replaces: 318053101)			Immediately	$ 150.03
13	318009102		Panel-oven Door		Appelez-nous	-
15	318024000		Bracket-glass Mtg, Rh		Appelez-nous	-
15	318024001		Bracket-glass Mtg, Lh		Appelez-nous	-
16	5303310533		Glass-oven Door, Heat Barrier				$ 220.55
17	5303310534		Spacer-glass		Appelez-nous	-
20	5303310504		Spacer-handle, (2)		Appelez-nous	-
22	5303310511		Retainer-glass		Appelez-nous	-
23	318024700		Hinge		Appelez-nous	-
29	5303310535		Spacer-door		Appelez-nous	-
31	5303310536		Latch-door				$ 30.66
32	318057200		Deflector		Appelez-nous	-
18A	5303310505		Seal-rope		Appelez-nous	-
18B	5303310531		Seal-rope (not Illustrated)		Appelez-nous	-
39A	318040602		Handle-door, Oven		Appelez-nous	-
39B	5303310510		Screw-handle Mtg (not Illustrated)				$ 14.18
