01 - Cover


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door

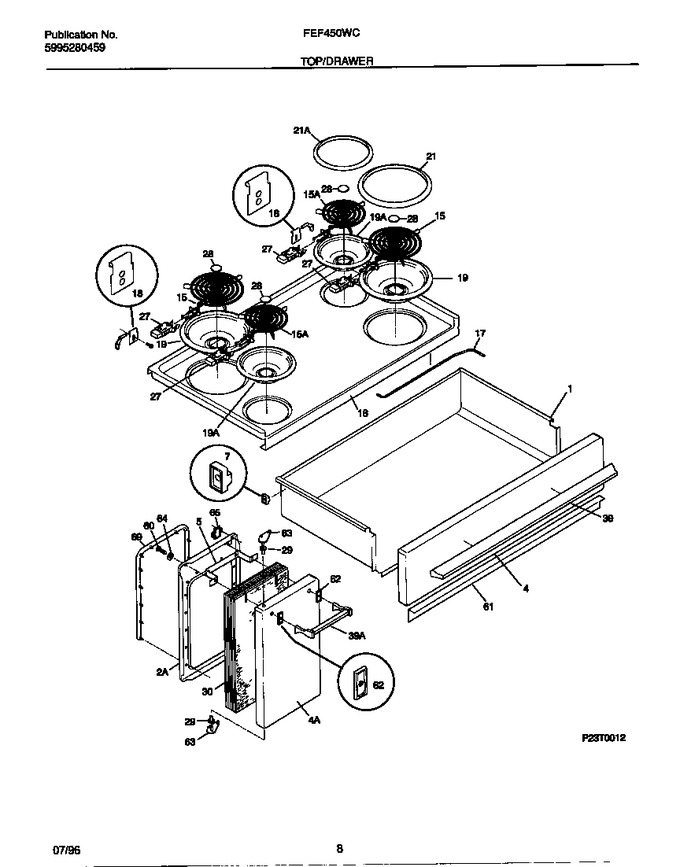

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3202108		Drawer-utility		Appelez-nous	-
2	318048203		Liner-small Door		Appelez-nous	-
4	318009302		Panel-door, White		Appelez-nous	-
4	08011980		Panel-drawer, White		Appelez-nous	-
5	318014500		Spacer-handle		Appelez-nous	-
7	5301315217		Glide-drawer		Appelez-nous	-
15	PS12-4BK		Element-surface, Small/6 Inch   (Replaces: 5303309000)			Immediately	$ 35.96
15	316442301		Element-surface, Large/8 Inch   (Replaces: 5303309001)			Immediately	$ 44.39
16	08011961		Main Top, White		Appelez-nous	-
17	3051554		Rod-maintop Support		Appelez-nous	-
19	5303293549		Pan-burner, Small		Appelez-nous	-
19	5303293548		Pan-burner, Large		Appelez-nous	-
21	5308003114		Trim Ring-large		Appelez-nous	-
21	5308003113		Trim Ring-small		Appelez-nous	-
27	5303935058		Terminal Block Kit, Surface Element   (Replaces: 5301167733)			Immediately	$ 13.81
28	5303301461		Medallion, Surface Element		Appelez-nous	-
29	5301306686		Spacer-hinge Pin		Appelez-nous	-
30	5301311649		Insulation-door, Small Oven		Appelez-nous	-
39	3201576		Handle-drawer		Appelez-nous	-
39	318040603		Handle-door		Appelez-nous	-
60	5303310510		Screw-handle Mtg				$ 14.18
61	318107700		Toeplate		Appelez-nous	-
62	5303310504		Spacer-handle, (2)		Appelez-nous	-
64	5303304015		Washer, Padded		Appelez-nous	-
65	3204306		Latch-door, Small		Appelez-nous	-
69	318053300		Seal-oven Door		Appelez-nous	-
*21803	3203618		Rivet-pop, Warning-plate		Appelez-nous	-
18A	3051658		Bracket-hinge, Main Top Lh		Appelez-nous	-
18B	5301315631		Bracket-hinge, Main Top Rh		Appelez-nous	-
63A	318024501		Hinge-bottom		Appelez-nous	-
63B	318024503		Hinge-top		Appelez-nous	-
