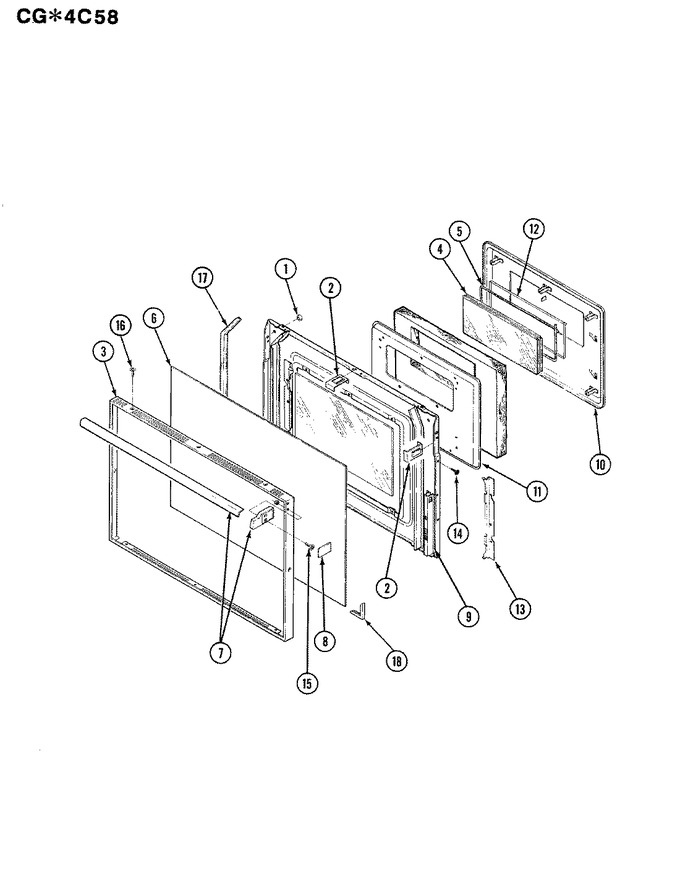

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door
04 - Gas Controls
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8003P002-60 | Bumper Door (round) | 1 |
|
- | ||||
| 1 | 8002P021-60 | Catch, Door Lock | 1 |
|
- | ||||
| 2 | 7112P034-60 | Clip, Door | 1 |
|
- | ||||
| 3 | 7706P178-60 | Frame, Door | 1-26 |
|
- | ||||
| 3 | 7706P243-60 | Frame, Door | 31 |
|
- | ||||
| 3 | 7706P222-60 | Frame, Oven Door | 27-30 |
|
- | ||||
| 4 | 7706P177-60 | Frame, Window | 1 |
|
- | ||||
| 5 | 7201P018-60 | Gasket, Window | 1 |
|
- | ||||
| 6 | 7902P101-60 | Glass, Window Outer | 1 |
|
- | ||||
| 6 | 7902P276-60 | Glass, Door | 1 |
|
- | ||||
| 6 | 7902P103-60 | Glass, Window | 1 |
|
- | ||||
| 7 | 7701P047-60 | Handle, Door | 1 |
|
- | ||||
| 8 | 7728P012-60 | Insert, Oven Door Handle | 1 |
|
- | ||||
| 8 | 2404F021-23 | Lining, Broiler | 1 |
|
- | ||||
| 9 | 2402W125-15 | Lining, Door | 27-28 |
|
- | ||||
| 9 | WP7103P114-60 | Nut, Snap (round-wht) (Replaces: 7103P039-60) | 30 |
|
$ 9.89 | ||||
| 9 | WP7103P114-60 | Nut, Snap (Replaces: 7103P114-60) | 31 |
|
$ 9.89 | ||||
| 9 | 2402W128-15 | Lining | 29 |
|
- | ||||
| 9 | 2422H082 | Lining, Ovn Door | 1-26 |
|
- | ||||
| 10 | 2410W027-15 | Pad Assy, Ov Dr W/w | 10-26 |
|
- | ||||
| 10 | 2410W029-15 | Pad, Door | 27 |
|
- | ||||
| 10 | 2430F016 | + Pad Assembly | 1-9 |
|
- | ||||
| 11 | 2416F018-78 | Panel, Storage Dwr Coffee | 1 |
|
- | ||||
| 11 | 2416F018-71 | Panel, Storage Dwr White | 1 |
|
- | ||||
| 11 | 2410F016-51 | Pad, Inner | 1 |
|
- | ||||
| 11 | 2416F018-76 | Panel, Storage Dwr Hvt Wheat | 1 |
|
- | ||||
| 11 | 7113P002-60 | Pin, Hinge | 1 |
|
$ 9.05 | ||||
| 11 | 2416F018-77 | Panel, Storage Dwr Avoc. | 1 |
|
- | ||||
| 11 | 2416F018-74 | Panel, Storage Dwr Almond | 1 |
|
- | ||||
| 12 | 3804F022-45 | Retainer | 1 |
|
- | ||||
| 13 | 3804F051-80 | Retainer, Glass | 1 |
|
- | ||||
| 14 | 7107P017-60 | Rivet | 1 |
|
- | ||||
| 15 | 7101P123-60 | Screw | 1 |
|
- | ||||
| 16 | WP7101P126-60 | Screw, Frame (Replaces: 7101P126-60) | 1 |
|
Immediately | $ 6.85 | |||
| 17 | 7208P002-60 | Seal | 1 |
|
- | ||||
| 18 | WP7803P058-60 | Spring (Replaces: 7803P002-60) | 1 |
|
$ 16.55 | ||||
| 18 | 3420A033-34 | Stop, Oven Door | 1 |
|
- | ||||
| 18 | 8270P051-60 | Tape, 2`` X 16`` Reflective | 30 |
|
- | ||||
| 18 | 8010P045-60 | Spacer, Glass Corner | 1 |
|
- |
