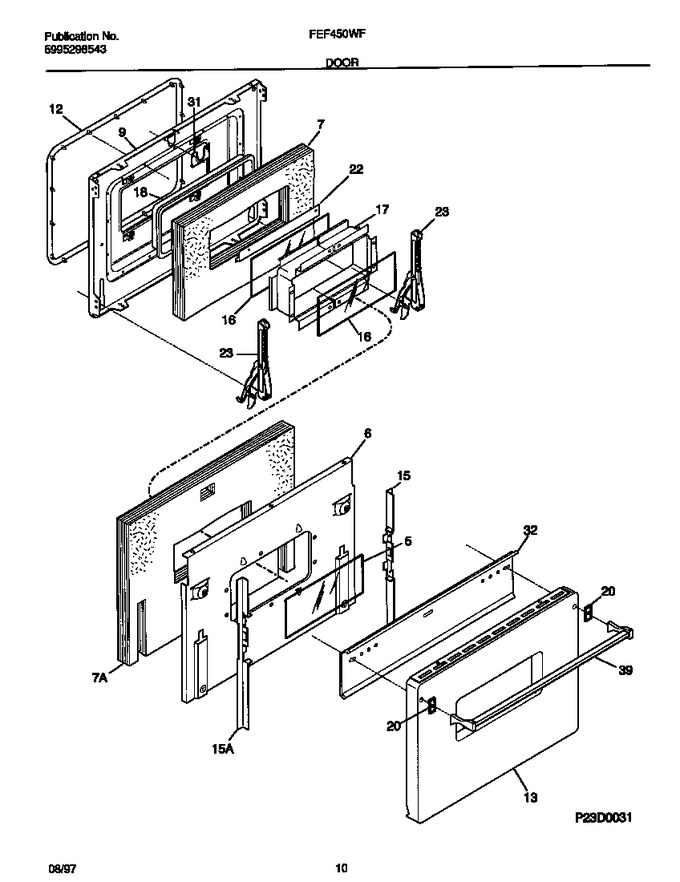

SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	5303310508		Glass-oven Door, Heat Barrier, Inner		Appelez-nous	-
6	318057000		Baffle-door		Appelez-nous	-
7	318106000		Insulation-door		Appelez-nous	-
7	5305069001		Insulation, Oven Door		Appelez-nous	-
9	5303320621		Liner-oven Door		Appelez-nous	-
12	318053103		Seal-oven Door   (Replaces: 5303311152)			Immediately	$ 150.03
13	318009101		Panel-oven Door		Appelez-nous	-
15	318024000		Bracket-glass Mtg, Rh		Appelez-nous	-
15	318024001		Bracket-glass Mtg, Lh		Appelez-nous	-
16	5303310533		Glass-oven Door, Heat Barrier				$ 220.55
17	318139000		Spacer-glass		Appelez-nous	-
18	5303310531		Seal-rope		Appelez-nous	-
20	3201572		Spacer-handle, (2)		Appelez-nous	-
22	5303310511		Retainer-glass		Appelez-nous	-
31	5303310536		Latch-door				$ 30.66
32	318057200		Deflector		Appelez-nous	-
*28579	5303307980		Screw, 8-32 X 7/16			Immediately	$ 14.18
*28580	5303317975		Screw-oven Door, 10 X 1/2, (5)		Appelez-nous	-
*28581	3051070		Screw, Hex Washer Head, 10-24 X 7/16, Special		Appelez-nous	-
*28582	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*28583	5303131766		Screw, Top Trim, 6-32 X 3/8				$ 10.87
23A	318024700		Hinge-oven Door, Assembly		Appelez-nous	-
23B	3201899		Washer, Hinge Assy, (4) (not Illustrated)		Appelez-nous	-
39A	318040602		Handle-door, Oven		Appelez-nous	-
39B	5303310504		Spacer-deflector, (2) (not Illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
