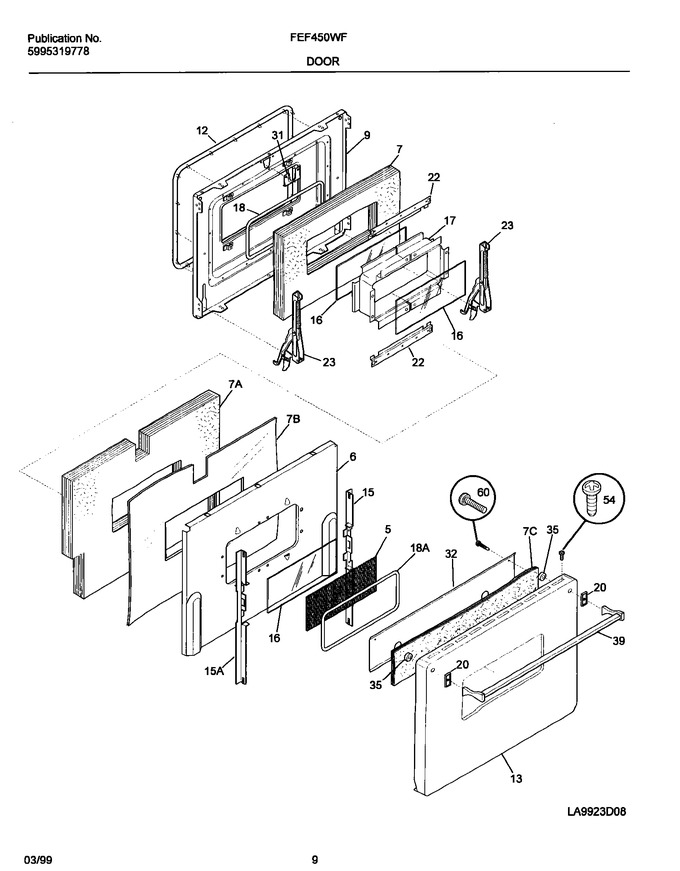

SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Body


08 - Top / Drawer


10 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	5303310508		Glass-oven Door, Inner		Appelez-nous	-
6	318057000		Baffle-door		Appelez-nous	-
7	5303310532		Insulation-door		Appelez-nous	-
9	318048702		Liner-oven Door		Appelez-nous	-
12	318053103		Seal-oven Door			Immediately	$ 150.03
13	318009101		Panel-oven Door		Appelez-nous	-
15	318024000		Bracket-glass Mtg, Rh		Appelez-nous	-
16	5303310533		Glass-oven Door, Heat Barrier				$ 220.55
17	318139000		Spacer-glass		Appelez-nous	-
18	5303310531		Seal-rope		Appelez-nous	-
20	5303304833		Spacer-handle (2)		Appelez-nous	-
22	5303310511		Retainer-glass		Appelez-nous	-
23	318024700		Hinge		Appelez-nous	-
31	5303310536		Latch-door				$ 30.66
32	318057200		Deflector		Appelez-nous	-
35	5303310504		Spacer-door Handle,(2)		Appelez-nous	-
39	5303304947		Handle		Appelez-nous	-
54	5303317975		Screw,10 X 1/2		Appelez-nous	-
60	5303317085		Screw-handle		Appelez-nous	-
15A	318024001		Bracket-glass Mtg, Lh		Appelez-nous	-
18A	5303310505		Seal (glass Ext. Door)		Appelez-nous	-
7A	318106000		Insulation-door		Appelez-nous	-
7B	5304400472		Insulation,oven Door		Appelez-nous	-
7C	3204813		Insulation-door		Appelez-nous	-
NI	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
NI	5303307980		Screw, 8-32 X 7/16			Immediately	$ 14.18
NI	5303308450		Screw, 8 X 3/8		Appelez-nous	-
NI	318086002		Flat Washer		Appelez-nous	-
NI	5303317975		Screw,10 X 1/2		Appelez-nous	-
NI	3201899		Washer		Appelez-nous	-
NI	3203618		Rivet,pop		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
