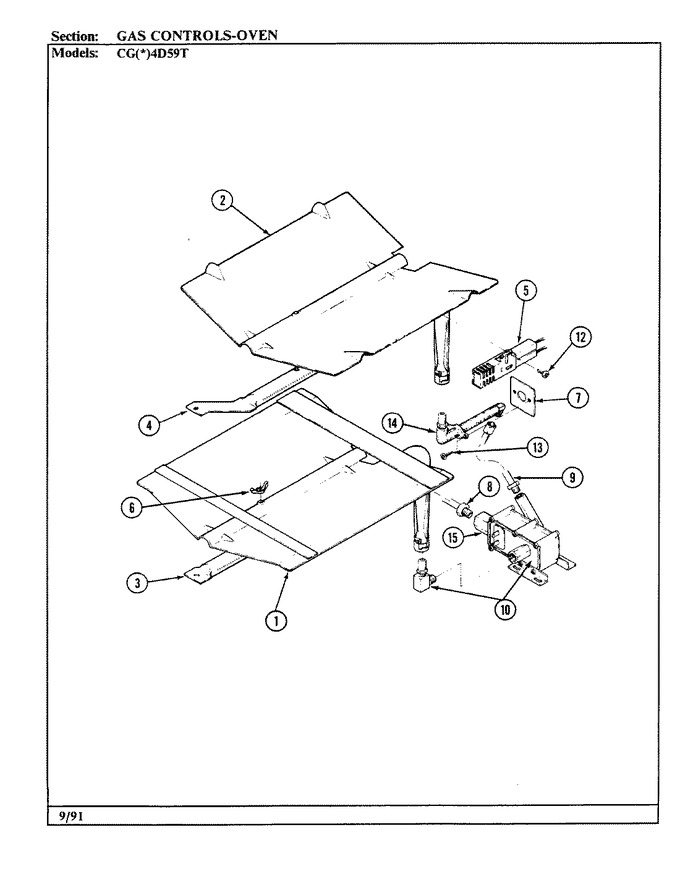

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601W184-15 | Baffle | 1 |
|
- | ||||
| 2 | 3601F181-45 | Baffle, Oven Burner | 1 |
|
- | ||||
| 3 | 3403A015-45 | Burner Oven | 45 |
|
- | ||||
| 3 | 3403D027-45 | Burner, Oven | 54 |
|
- | ||||
| 3 | 7505P101-60 | Burner | 1 |
|
- | ||||
| 4 | 3403A016-45 | Burner Assy Broil | 45 |
|
- | ||||
| 4 | 7505P100-60 | Burner, Bake & Broil | 1 |
|
- | ||||
| 4 | 3403D028-45 | Burner, Broil | 54 |
|
- | ||||
| 5 | 12400035 | Igniter, Oven (Replaces: 7432P067-60) | 1 |
|
Immediately | $ 60.44 | |||
| 6 | 7103P030-60 | Nut, Wing | 1 |
|
$ 6.37 | ||||
| 7 | 3605F019-45 | Plate, Fitting | 1 |
|
- | ||||
| 8 | 3414F048-44 | Tubing, 3/8 X 51-1/2 | 1 |
|
- | ||||
| 9 | 3414F057-44 | Tubing, 3/8 X 20-3/4 | 1 |
|
- | ||||
| 10 | 7501P095-60 | Valve, Broil & Bake - Nat | 46 |
|
- | ||||
| 10 | 7501P091-60 | Valve, Broil & Bake | 44 |
|
- | ||||
| 10 | 7501P034-60 | Valve, Broil & Bake | 1 |
|
- | ||||
| 12 | WP4159193 | Screw (10-24x5/16-ni) (Replaces: 7101P282-60) | 1 |
|
$ 4.29 | ||||
| 13 | WP3387230 | Screw, No.10 X .5 Tya (Replaces: 7101P274-60) | 1 |
|
Immediately | $ 7.69 | |||
| 14 | 7507P028-60 | Fitting, Broil Burner | 1 |
|
- | ||||
| 15 | 7103P121-60 | Loxit Nut | 1 |
|
- | ||||
| NI | 7431P006-60 | Module, Spark | 1 |
|
- |
