SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Body

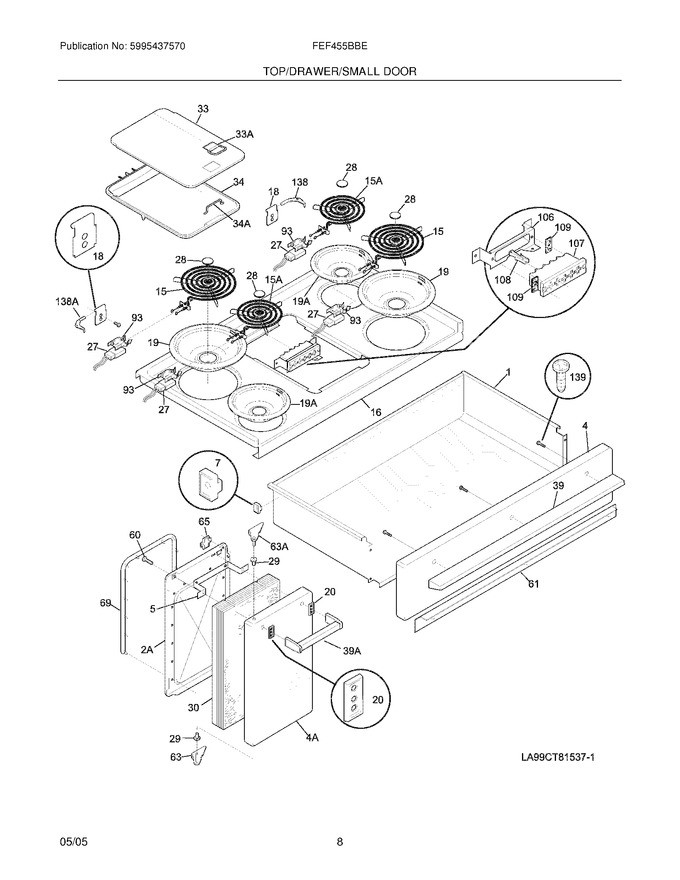

07 - Top/drawer/small Door


09 - Oven Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3202108		Drawer-utility		Appelez-nous	-
4	3201577		Panel-drawer, Black		Appelez-nous	-
5	318014500		Spacer,door Handle		Appelez-nous	-
7	5303326236		Guide,drawer		Appelez-nous	-
16	5304400734		Main Top		Appelez-nous	-
18	318186400		Retainer,hinge Pin		Appelez-nous	-
20	3201572		Spacer-handle, (2)		Appelez-nous	-
28	5303017715		Medallion,1 1/2``dia ,black ,surface Element				$ 64.46
29	318141800		Spacer,hinge Pin ,upper/lower				$ 14.49
30	318133722		Insulation,small Oven Door		Appelez-nous	-
33	5304400735		Cover-griddle		Appelez-nous	-
34	5304400770		Griddle		Appelez-nous	-
39	318185901		Handle,drawer ,black		Appelez-nous	-
60	5303323139		Screw,10-24 X 0.906				$ 13.46
61	318107700		Toeplate		Appelez-nous	-
63	318024508		Hinge,door ,lwr Small Oven ,lower				$ 133.72
65	318090220		Strike-door				$ 57.04
69	318053300		Seal,door ,small Oven		Appelez-nous	-
93	318122500		Support,terminal Block ,(4)		Appelez-nous	-
106	318180200		Bracket,receptacle		Appelez-nous	-
107	5303292139		Terminal Block, Griddle Element		Appelez-nous	-
108	5303292140		Terminal				$ 35.12
138	5301315631		Pin,hinge ,rs Cooktop		Appelez-nous	-
139	5303311135		Screw-handle,8-32 X 3/4 ,(2)		Appelez-nous	-
2A	318048211		Liner,inner Door ,small Oven		Appelez-nous	-
33A	5301313051		Handle-cover		Appelez-nous	-
34A	08005351		Handle-griddle		Appelez-nous	-
39A	318040605		Handle,door ,black ,small Oven		Appelez-nous	-
4A	318009307		Panel-oven Door, Small		Appelez-nous	-
63A	318024509		Hinge,door ,upr Small Oven				$ 118.28
F138	3051658		Pin,hinge ,ls Cooktop		Appelez-nous	-
F15	316442301		Element,surface ,8`` ,large   (Replaces: 5303012223)			Immediately	$ 44.39
F15A	318372211		Element,surface ,6`` ,small   (Replaces: 08067762)			Immediately	$ 45.14
F19	316048413		Pan,surface Element ,large ,chrome   (Replaces: 318067056)			Immediately	$ 9.85
F19A	316048414		Pan,surface Element ,small ,chrome   (Replaces: 318067046)			Immediately	$ 16.11
F27	318223420		Terminal Block,surface Element ,32`` ,orange Leads		Appelez-nous	-
F27	318223419		Terminal Block,surface Element ,24`` ,yellow Leads		Appelez-nous	-
F27	318223417		Terminal Block,surface Element ,22`` ,white Leads		Appelez-nous	-
F27	318223416		Terminal Block,surface Element ,27`` ,brown Leads		Appelez-nous	-
NI	318086002		Washer,flat ,steel		Appelez-nous	-
NI	5303321106		Plug-button				$ 11.60
NI	5304400790		Plug		Appelez-nous	-
NI	08002868		Screw,10-24 X 0.500 ,probe,thrm Brkt ,shield,drwr,box				$ 14.18
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89

    View Diagram in Separate Window       Print Part List
