SELECT A DIAGRAM

01 - Cover

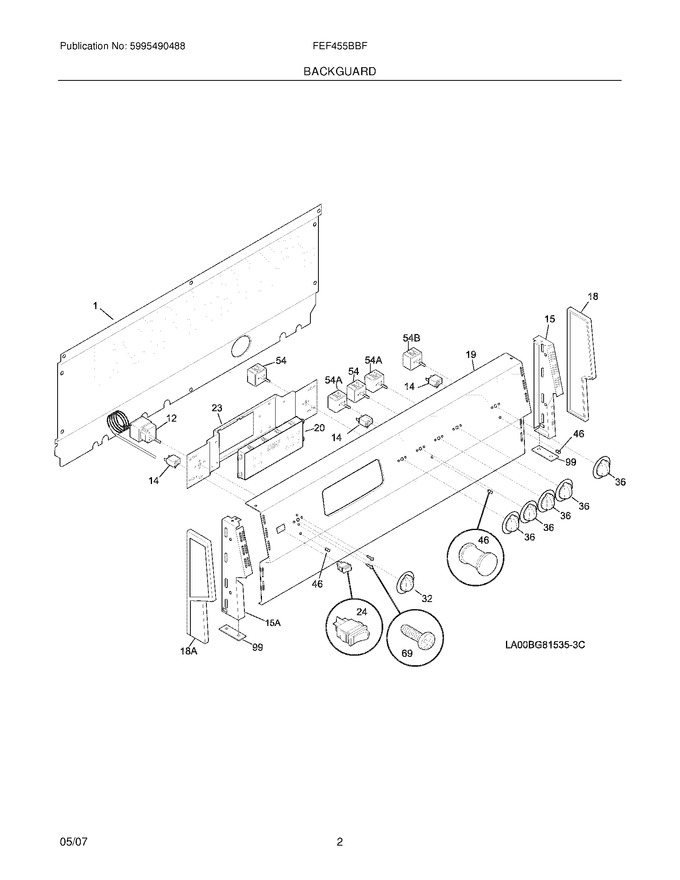

03 - Backguard


05 - Body


07 - Top/drawer/small Door


09 - Oven Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318086900		Shield,backguard		Appelez-nous	-
15	318161902		Bracket,end Cap ,rh				$ 48.88
18	318190604		End Cap,rh		Appelez-nous	-
19	318194101		Panel,control ,black		Appelez-nous	-
23	318015045		Bracket,clock/timer Mtg				$ 38.12
32	318196651		Knob,oven Thermostat ,black		Appelez-nous	-
36	318196634		Knob,control ,black				$ 64.50
46	318044512		Lens,indicator Light		Appelez-nous	-
69	5303288565		Screw, 8-32 X 3/16   (Replaces: 5303323134)				$ 3.12
99	5303304544		Spacer,end Cap Mtg.		Appelez-nous	-
15A	318161903		Bracket,end Cap ,lh		Appelez-nous	-
18A	318190605		End Cap,lh		Appelez-nous	-
F12	318183001		Thermostat,oven		Appelez-nous	-
F14	318369501		Lamp,indicator			Immediately	$ 67.62
F20	318185447		Clock/timer,electronic ,black ,es300				$ 378.64
F24	5304527841		Switch-rocker,black   (Replaces: 316005602)			Immediately	$ 11.38
F54	318293820		Switch,surface Unit ,small ,single   (Replaces: 318369605)				$ 83.62
F54A	318293827		Switch,surface Unit ,large ,single   (Replaces: 318369606)			Immediately	$ 90.82
F54B	318120501		Switch,surface Unit ,small & Large				$ 244.13
NI	316220805		Overlay,clock ,black ,es300				$ 49.40
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89

    View Diagram in Separate Window       Print Part List
