02 - Backguard
03 - Cooktop Parts
04 - Door Parts
05 - Drawer Parts
06 - Burner, Manifold And Gas Control
07 - Body Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

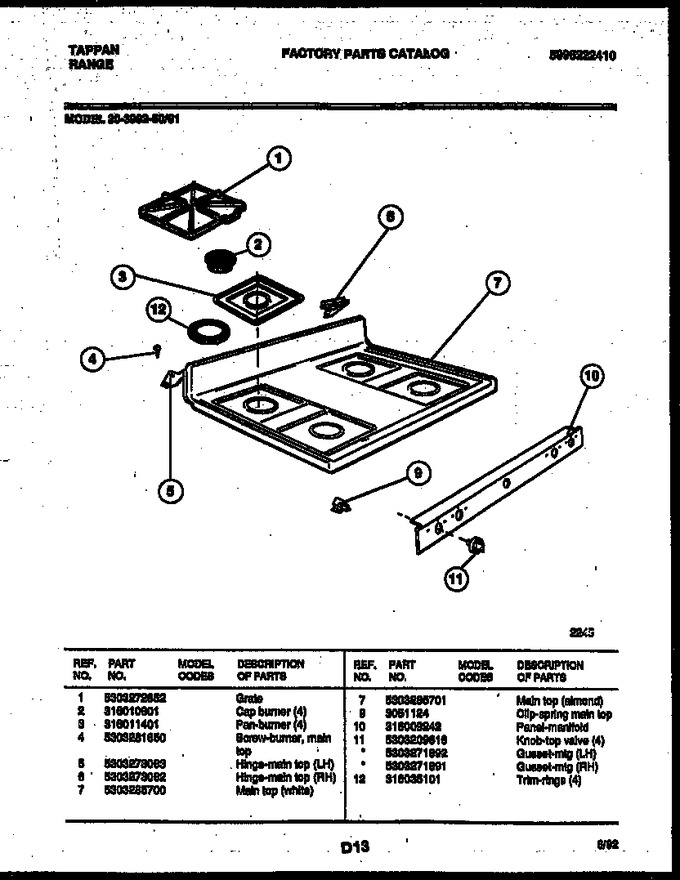

| 1 | 5303272852 | Grate |
|
$ 171.05 | |||||
| 2 | 316010901 | Cap-burner (4) |
|
$ 69.01 | |||||
| 3 | 316011401 | Pan-burner (4) |
|
$ 20.58 | |||||
| 4 | 5303281650 | Screw-burner, Main Top |
|
- | |||||
| 5 | 5303273063 | Hinge-main Top (lh) |
|
$ 48.41 | |||||
| 6 | 5303273062 | Hinge-main Top (rh) |
|
- | |||||
| 7 | 5303285701 | Main Top (almond) |
|
- | |||||
| 9 | 3205821 | Clip-spring Main Top (Replaces: 3051124) |
|
Immediately | $ 35.44 | ||||
| 10 | 316009242 | Panel-manifold |
|
- | |||||
| 11 | 5303209616 | Knob-top Valve, (4) |
|
- | |||||
| 12 | 316035101 | Trim-rings (4) |
|
- | |||||
| 11A | 5303271892 | Gusset-mtg (lh) (non-illustrated) |
|
- | |||||
| 11B | 5303271891 | Gusset-mtg (rh) (non-illustrated) |
|
- |
