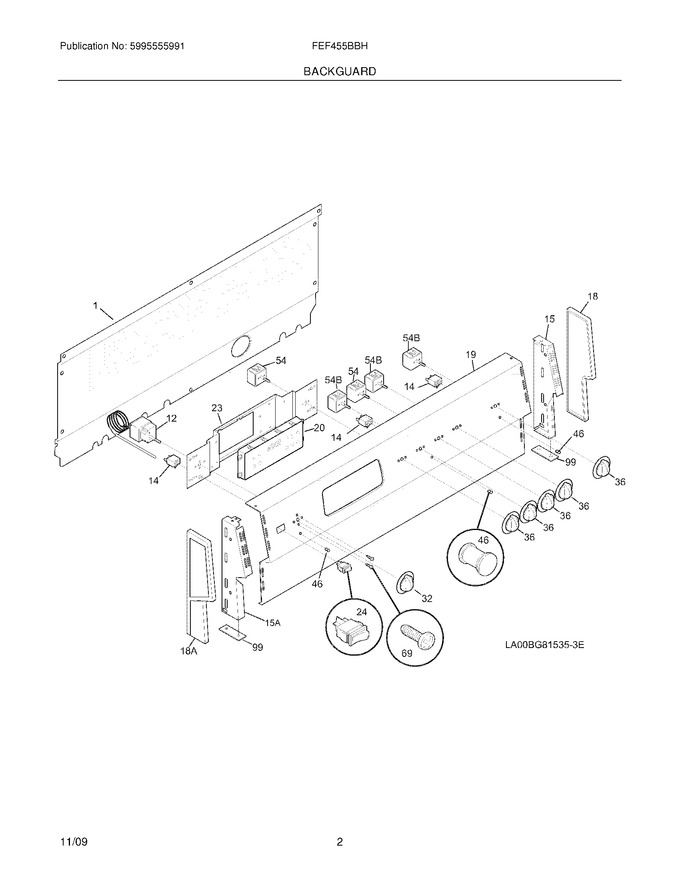

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318086913		Shield,backguard		Appelez-nous	-
15	318161902		Bracket,end Cap ,rh				$ 48.88
18	318190614		End Cap,white ,rh		Appelez-nous	-
19	318194101		Panel,control ,black		Appelez-nous	-
23	318015045		Bracket,clock/timer Mtg				$ 38.12
32	318196651		Knob,oven Thermostat ,black		Appelez-nous	-
36	318196634		Knob,control ,black				$ 64.50
46	318044512		Lens,indicator Light		Appelez-nous	-
69	5303288565		Screw,8-32 X 3/16 ,(8)   (Replaces: 5303323134)				$ 3.12
99	5303304544		Spacer,end Cap Mtg.		Appelez-nous	-
15A	318161903		Bracket,end Cap ,lh		Appelez-nous	-
18A	318190615		End Cap,white ,lh		Appelez-nous	-
F12	318183001		Thermostat,oven		Appelez-nous	-
F14	318369501		Lamp,indicator			Immediately	$ 67.62
F20	318185498		Clock/timer,electronic ,black ,es300		Appelez-nous	-
F24	5304527841		Switch-rocker,black   (Replaces: 316005602)			Immediately	$ 11.38
F54	318293820		Switch,surface Element ,small				$ 83.62
F54B	318120501		Switch,surface Unit ,small & Large				$ 244.13
NI	316419141		Overlay,clock ,black ,es300   (Replaces: 316419103)			Immediately	$ 56.87
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
