Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 4002F124-45 Back, Broiler 38 Appelez-nous -
1 4002F078-45 Back, Broiler 1 Appelez-nous -
2 4002F094-80 Back, Main 1 Appelez-nous -
2 WP7101P126-60 Screw   (Replaces: 7101P061-60) 1 In-Stock Immediately $ 6.85

3 3601W124-16 Baffle, Ovn Front 1 Appelez-nous -
3 3601W124-23 Baffle, Oven Frt 1 Appelez-nous -
3 3601W124-19 Baffle, Oven Front 60 Appelez-nous -
4 7401P015-60 Block, Terminal 1 Appelez-nous -
5 7401P006-60 Block, Disconnect 1 Appelez-nous -
6 WP7101P126-60 Screw   (Replaces: 7101P061-60) 1 In-Stock Immediately $ 6.85

6 04000018 Bottom, Broiler 1 Appelez-nous -
7 4011F095-80 Bottom, Burner Box 1 Appelez-nous -
8 2205F020-21 Bottom, Oven 60 Appelez-nous -
8 2205F012-23 Bottom, Oven 1 Appelez-nous -
8 2205F012-16 Bottom, Oven 1 Appelez-nous -
9 4006W026-80 Box, Flue 1 Appelez-nous -
9 WP7101P126-60 Screw   (Replaces: 7101P061-60) 1 In-Stock Immediately $ 6.85

10 WP3801F656-51 Bracket, Anti-tip   (Replaces: 3801F218-51) 59 In-Stock Immediately $ 4.69

10 3801F049-34 Bracket,control Panel (l) 1 Appelez-nous -
10 3801F047-34 Bracket,control Panel (r) 1 Appelez-nous -
10 WP7101P126-60 Screw   (Replaces: 7101P061-60) 1 In-Stock Immediately $ 6.85

10 WP7101P485-60 Screw, Bracket   (Replaces: 7101P289-60) 59 Special Order $ 26.33

10 3801F198-51 Bracket, Tie-down 1 Appelez-nous -
11 WP7112P004-60 Clip, Thermostat   (Replaces: 7112P004-60) 1 In-Stock Immediately $ 11.07

11 7112P019-60 Clip, Hinge Pin 1 Appelez-nous -
12 7112P030-60 Clip, Top Retainer 1 Appelez-nous -
13 WP7101P126-60 Screw   (Replaces: 7101P061-60) 1 In-Stock Immediately $ 6.85

13 4005F005-45 Cover 1 Appelez-nous -
14 WP7101P126-60 Screw   (Replaces: 7101P061-60) 1 In-Stock Immediately $ 6.85

14 4012F019-80 Front, Burner Box 1 Appelez-nous -
15 WP7101P126-60 Screw   (Replaces: 7101P061-60) 1 In-Stock Immediately $ 6.85

15 2201F034-23 Front, Oven Lower 1 Appelez-nous -
16 W10124350 Not Required Part Or See Note 1 Appelez-nous -
17 2003F003-00 Grate, Burner 1 Appelez-nous -
18 3418A030-34 Hinge Assy. (rt) 1 Appelez-nous -
18 3418A029-34 Hinge Assy. (lt) 1 Special Order $ 48.47

18 3413F002-23 Insert, Broil Pan 1 Appelez-nous -
19 4009F045-45 Lining, Broiler Side 1 Appelez-nous -
20 04000019 Lining, Inner Side 1 Appelez-nous -
21 4396923 Pan, Broil   (Replaces: 3401F004-23) 1 In-Stock Immediately $ 52.04

21 7431P006-60 Module, Spark 1 Appelez-nous -
22 WP4159193 Screw   (Replaces: 7118P004-60) 1 Special Order $ 4.29

22 2616F024-90 Panel, Manifold Black 1 Appelez-nous -
23 2618F052-71 Panel, Side (wht) 1 Appelez-nous -
23 2618F073-71 Panel, Side (wht)----na 44 Appelez-nous -
23 WP7101P126-60 Screw   (Replaces: 7101P061-60) 1 In-Stock Immediately $ 6.85

23 WP7101P126-60 Screw   (Replaces: 7101P058-60) 1 In-Stock Immediately $ 6.85

23 2618F073-74 Panel, Side (alm) 44 Appelez-nous -
24 7113P002-60 Pin, Hinge 1 Special Order $ 9.05

25 7801P030-60 Rack, Oven 1 Special Order $ 57.14

26 WP7101P126-60 Screw   (Replaces: 7101P061-60) 1 In-Stock Immediately $ 6.85

27 WP4159193 Screw   (Replaces: 7101P112-60) 1 Special Order $ 4.29

28 Y7101P25460 Leg, Leveling 1 Appelez-nous -
29 WP7101P126-60 Screw   (Replaces: 7101P058-60) 1 In-Stock Immediately $ 6.85

30 WP7101P126-60 Screw   (Replaces: 7101P061-60) 1 In-Stock Immediately $ 6.85

31 WP7101P126-60 Screw   (Replaces: 7101P061-60) 1 In-Stock Immediately $ 6.85

32 8010P048-60 Spacer, Main Top 1 Appelez-nous -
32 8003P011-60 Spacer, Main Top 44 Appelez-nous -
32 7212P001-60 Seal 1 Appelez-nous -
33 7803P013-60 Spring 1 Appelez-nous -
33 7208P007-60 Seal, Silastic 1 Appelez-nous -
34 3420A033-34 Stop, Oven Door 1 Appelez-nous -
35 3807F205-45 Support, Oven Rear 1 Appelez-nous -
36 3807F347-51 Support, Top Burner 1 Appelez-nous -
37 2001F040-81 Top, Main White 1 Appelez-nous -
38 3404A013-51 Track, Broiler Dwr Right 1 Appelez-nous -
38 WP4159193 Screw   (Replaces: 7101P115-60) 1 Special Order $ 4.29

38 3404A014-51 Track, Broiler Dwr Left 1 Appelez-nous -
39 7402P014-60 Cord, Power 1 Appelez-nous -
40 16000038 Manual, Use & Care 1 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

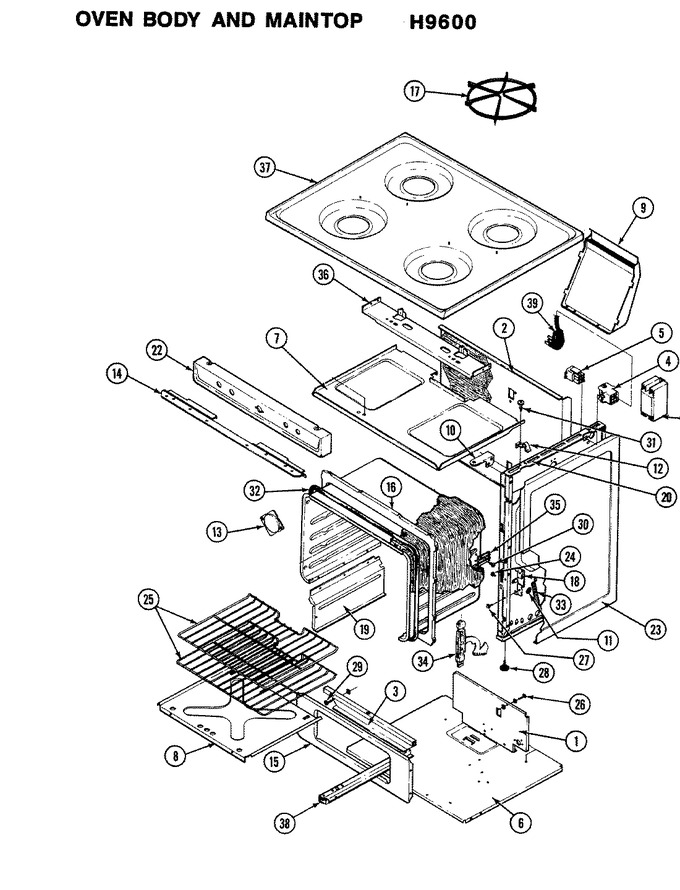

Diagram for CH9616W79R
