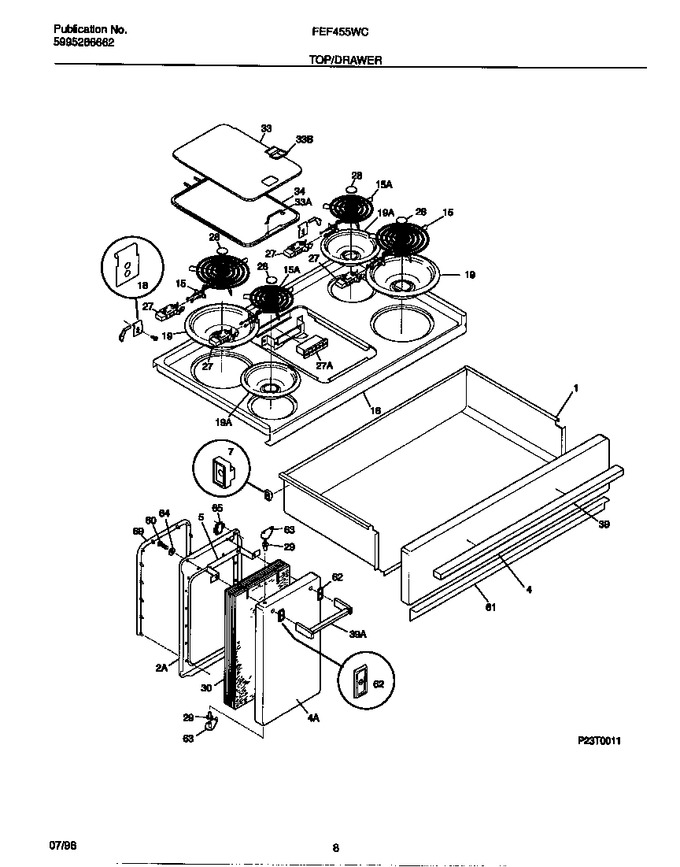

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
02 - Backguard
03 - Body
04 - Top/drawer
05 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3202108 | Drawer-utility |
|
- | |||||
| 2 | 318048204 | Liner-small Door |
|
- | |||||
| 4 | 318009307 | Panel-oven Door, Small |
|
- | |||||
| 4 | 3201577 | Panel-drawer, Black |
|
- | |||||
| 5 | 318014500 | Spacer-handle |
|
- | |||||
| 7 | 5301315217 | Glide-drawer |
|
- | |||||
| 15 | 316442301 | Element-surface, Large/8 Inch (Replaces: 5303309001) |
|
Immediately | $ 44.39 | ||||
| 15 | PS12-4BK | Element-surface, Small/6 Inch (Replaces: 5303309000) |
|
Immediately | $ 35.96 | ||||
| 16 | 5303293761 | Main Top, Chrome |
|
- | |||||
| 18 | 3051658 | Bracket-hinge, Main Top Lh |
|
- | |||||
| 18 | 5301315631 | Bracket-hinge, Main Top Rh |
|
- | |||||
| 19 | 316048414 | Pan-surface Element, Small / 6 Inch (Replaces: 5303280336) |
|
Immediately | $ 16.11 | ||||
| 19 | 316048413 | Pan-surface Element, Large/8 Inch (Replaces: 5303013588) |
|
Immediately | $ 9.85 | ||||
| 27 | 5303311332 | Bracket-terminal Mtg, Griddle (not Illustrated) |
|
- | |||||
| 27 | 5303935058 | Terminal Block Kit, Surface Element (Replaces: 5301167733) |
|
Immediately | $ 13.81 | ||||
| 27 | 5303292140 | Terminal (not Illustrated) |
|
$ 35.12 | |||||
| 27 | 5303292139 | Terminal Block, Griddle Element |
|
- | |||||
| 28 | 5303301461 | Medallion, Surface Element |
|
- | |||||
| 29 | 318141800 | Spacer-hinge Pin |
|
$ 14.49 | |||||
| 30 | 5301311649 | Insulation-door, Small Oven |
|
- | |||||
| 33 | 3201527 | Cover-griddle |
|
- | |||||
| 33 | 08005351 | Handle-griddle |
|
- | |||||
| 33 | 5301313051 | Handle-cover |
|
- | |||||
| 34 | 5301167935 | Griddle |
|
- | |||||
| 39 | 3201576 | Handle-drawer |
|
- | |||||
| 39 | 3201575 | Handle-door,small Oven |
|
- | |||||
| 60 | 5303310510 | Screw-handle Mtg |
|
$ 14.18 | |||||
| 61 | 318107700 | Toeplate |
|
- | |||||
| 62 | 08002848 | Screw, 10-24 X 29/32, Terminal Block (not Illustrated) |
|
- | |||||
| 62 | 3201572 | Spacer-handle, (2) |
|
- | |||||
| 63 | 318024507 | Hinge-top |
|
- | |||||
| 63 | 318024505 | Hinge-lower |
|
- | |||||
| 64 | 3201899 | Washer, Hinge Assy, (4) |
|
- | |||||
| 65 | 3204306 | Latch-door, Small |
|
- | |||||
| 69 | 318053300 | Seal-oven Door |
|
- | |||||
| *91167 | 3203618 | Rivet-pop, Warning-plate |
|
- |
