SELECT A DIAGRAM
01 - Body
02 - Control System
03 - Drawer
New Model Search:

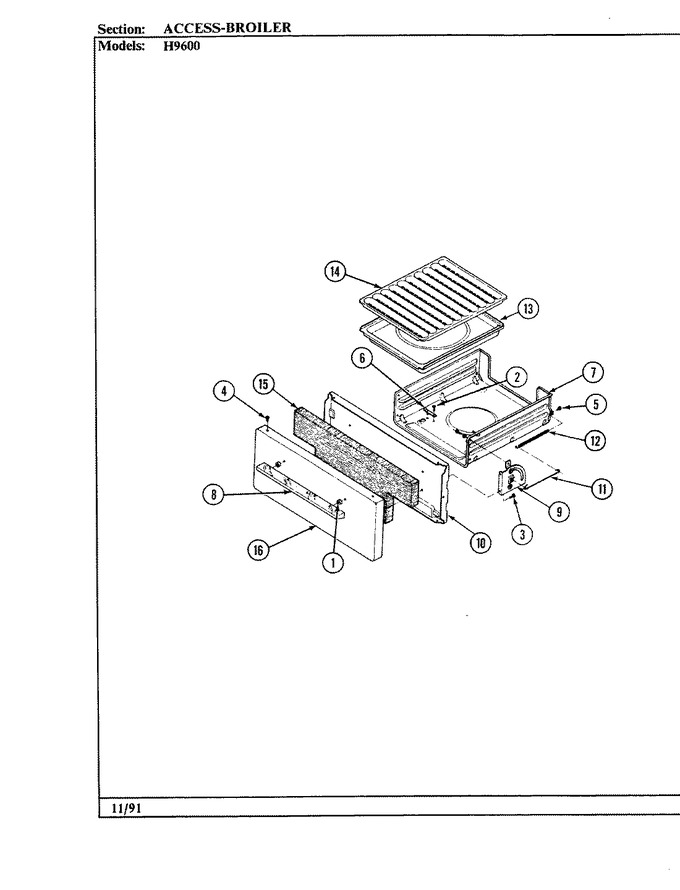

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8010P002-60 | Spacer, Handle | 1 |
|
- | ||||
| 2 | WP74004005 | Screw (Replaces: 7101P076-60) | 1 |
|
$ 6.95 | ||||
| 2 | 7103P067-60 | Lock Nut, Catch | 1 |
|
- | ||||
| 3 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 1 |
|
Immediately | $ 6.85 | |||
| 4 | WP7101P126-60 | Screw (Replaces: 7101P058-60) | 1 |
|
Immediately | $ 6.85 | |||
| 5 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 1 |
|
Immediately | $ 6.85 | |||
| 6 | 8002P001-60 | Catch | 1 |
|
- | ||||
| 7 | 3407W009-19 | Broiler Drawer Assy. | 1 |
|
- | ||||
| 7 | 3407W009-23 | Drawer, Broiler | 1 |
|
- | ||||
| 7 | 7101P114-60 | Screw | 1 |
|
- | ||||
| 8 | 7701P012-60 | Handle, Drawer (chr) | 1 |
|
- | ||||
| 8 | WP3387230 | Screw, Clamp (Replaces: 7101P080-60) | 1 |
|
Immediately | $ 7.69 | |||
| 8 | 74002481 | Screw, Handle (Replaces: 7101P283-60) | 1 |
|
$ 5.82 | ||||
| 8 | WP2411F013-70 | Handle, Oven Door (Replaces: 7701P074-60) | 1 |
|
$ 186.01 | ||||
| 9 | 3418A062-34 | Hinge, Broiler (rt) | 1 |
|
- | ||||
| 9 | 3418A063-34 | Hinge, Broiler (lt) | 1 |
|
- | ||||
| 10 | 2404F021-23 | Lining, Broiler | 1 |
|
- | ||||
| 10 | 2404F021-19 | Lining, Broiler Drawer | 1 |
|
- | ||||
| 11 | 7807P001-60 | Link, Broiler | 1 |
|
- | ||||
| 12 | 7803P014-60 | Spring | 1 |
|
- | ||||
| 13 | 4396923 | Pan, Broil (Replaces: 3401F004-23) | 1 |
|
Immediately | $ 52.04 | |||
| 14 | 3413F002-23 | Insert, Broil Pan | 1 |
|
- | ||||
| 15 | 7002P002-60 | Insulation | 1 |
|
- | ||||
| 16 | 2416F025-74 | Panel, Drawer (alm) | 1 |
|
- |
