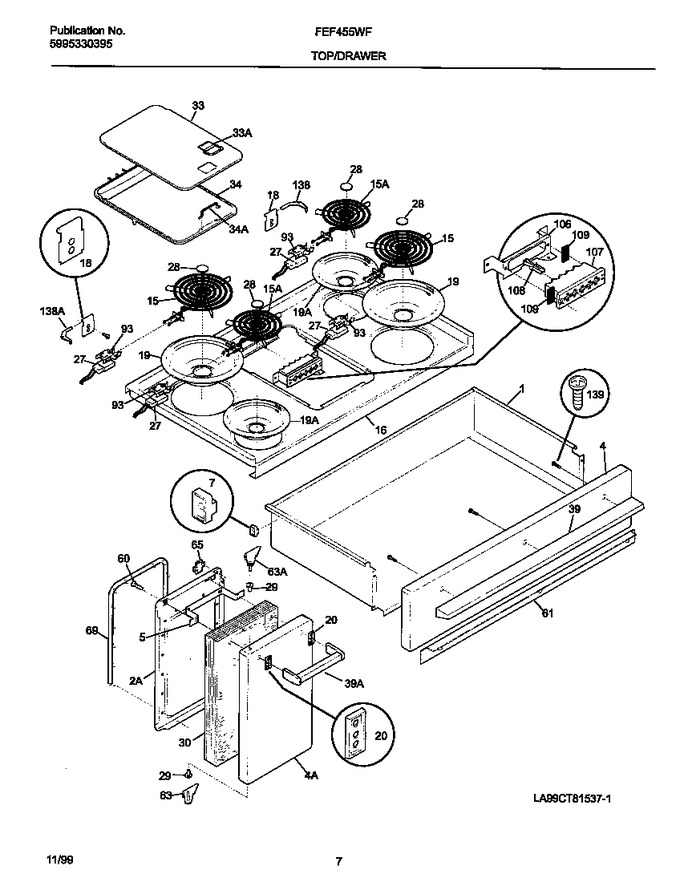

SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3202108		Drawer-utility		Appelez-nous	-
2	318048204		Liner-small Door		Appelez-nous	-
4	3201577		Panel-drawer, Black		Appelez-nous	-
4	318009307		Panel-oven Door, Small		Appelez-nous	-
5	318014500		Spacer-handle		Appelez-nous	-
7	5303326236		Drawer Guide		Appelez-nous	-
15	PS12-4BK		Element-surface, Small, 1500w   (Replaces: 5303309000)			Immediately	$ 35.96
15	316442301		Element-surface, Large/8 Inch   (Replaces: 5303309001)			Immediately	$ 44.39
16	5304400734		Main Top		Appelez-nous	-
18	3051745		Retainer-hinge Pin 57034000		Appelez-nous	-
19	316048414		Pan-surface Element, Small/6 Inch, (2)   (Replaces: 5303280336)			Immediately	$ 16.11
19	316048413		Pan-surface Element,large/8 Inch   (Replaces: 318067010)			Immediately	$ 9.85
20	3201572		Spacer-handle, (2)		Appelez-nous	-
27	RR500		Terminal Block   (Replaces: 5303323704)			Immediately	$ 9.42
28	5303301461		Medallion, Surface Element		Appelez-nous	-
29	318141800		Spacer-hinge Pin				$ 14.49
30	5301311649		Insulation-door, Small Oven		Appelez-nous	-
33	5301313051		Handle-cover		Appelez-nous	-
33	5304400735		Cover-griddle		Appelez-nous	-
34	08005351		Handle-griddle		Appelez-nous	-
34	5304400770		Griddle		Appelez-nous	-
39	3201575		Handle-door,small Oven		Appelez-nous	-
39	3201576		Handle-drawer		Appelez-nous	-
54	5303317975		Screw < 10 X 1/2 >,10 X 1/2		Appelez-nous	-
56	5304400427		Screw,6-20 X 1/2		Appelez-nous	-
60	5303323139		Screw,10-24 X 29/32				$ 13.46
61	318107700		Toeplate		Appelez-nous	-
63	318024507		Hinge-top		Appelez-nous	-
63	318024505		Hinge-lower		Appelez-nous	-
65	3204306		Latch-door, Small		Appelez-nous	-
69	318053300		Seal-oven Door		Appelez-nous	-
93	318122500		Support,terminal Block ,(4)		Appelez-nous	-
106	5304400472		Insulation,oven Door		Appelez-nous	-
107	5303292139		Terminal Block, Griddle Element		Appelez-nous	-
108	5303292140		Terminal				$ 35.12
109	5303323221		Washer,fiber		Appelez-nous	-
138	5301315631		Bracket-hinge, Main Top Rh		Appelez-nous	-
138	3051658		Bracket-hinge, Main Top Lh		Appelez-nous	-
139	08011955		Screw,10-24 X 3/8 ,square Drive			Immediately	$ 9.36
*76566	08002868		Screw 10 X 24 X 1/2				$ 14.18
*76567	5303321106		Plug-button				$ 11.60
*76568	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*76569	318086002		Flat Washer		Appelez-nous	-
*76570	5304400790		Plug		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
