01 - Body
02 - Door/drawer
03 - Internal Controls
04 - Oven
05 - Top Assembly
New Model Search:

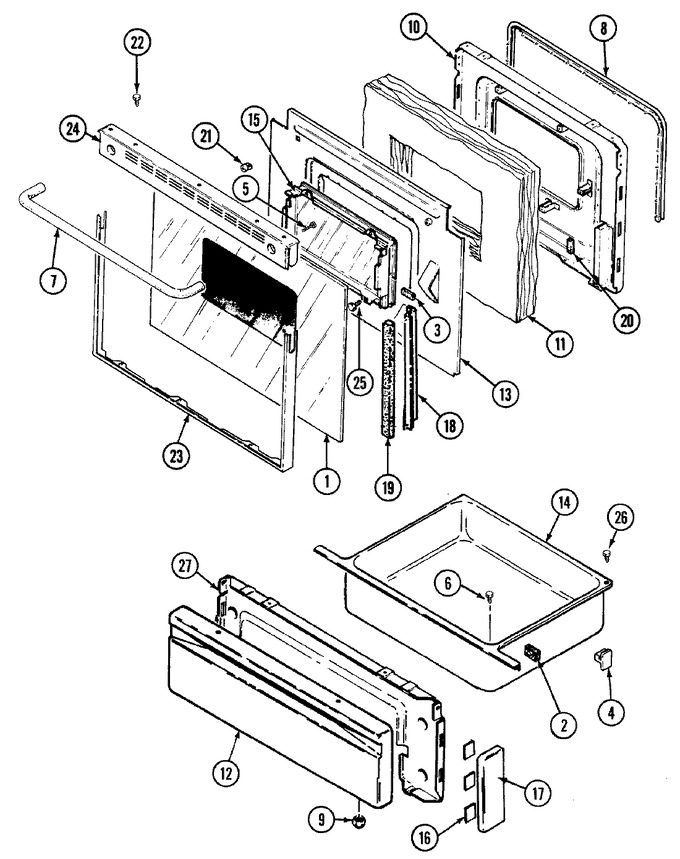

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7902P361-60 | Glass, Door (outer/blk) | 10 |
|
- | ||||
| 2 | WP854334 | Spacer, Rubber (Replaces: 8010P086-60) | 10 |
|
$ 11.95 | ||||
| 3 | 8010P085-60 | Spacer, Rubber | 10 |
|
- | ||||
| 4 | 8004P026-60 | Support, Drawer (rear) | 10 |
|
$ 9.29 | ||||
| 5 | 7101P326-60 | Screw | 10 |
|
- | ||||
| 6 | WP4159193 | Screw (Replaces: 7101P115-60) | 10 |
|
$ 4.29 | ||||
| 7 | 7701P149-60 | Handle, Oven Door (blk) | 10 |
|
- | ||||
| 8 | WPW10162384 | Gasket, Door (Replaces: 7201P046-60) | 10 |
|
Immediately | $ 77.61 | |||
| 9 | WPW10131078 | Nut, Lock (Replaces: 7103P085-60) | 10 |
|
$ 4.00 | ||||
| 10 | 2402W202-19 | Lining, Door | 10 |
|
- | ||||
| 11 | 4804F034-60 | Insulation, Door | 10 |
|
- | ||||
| 12 | 2416W002-70 | Panel Assy, Broiler Door | 10 |
|
- | ||||
| 13 | 3601F232-45 | Baffle, Door | 10 |
|
- | ||||
| 14 | 3405F018-80 | Drawer, Storage | 10 |
|
- | ||||
| 15 | 7907P021-60 | Window Asy. | 10 |
|
- | ||||
| 16 | 8270P098-60 | Tape | 10 |
|
$ 5.02 | ||||
| 17 | 7744P087-60 | End Cap (blk) | 10 |
|
- | ||||
| 18 | 3818F052-51 | Channel, Air | 10 |
|
- | ||||
| 19 | 7208P002-60 | Seal | 10 |
|
- | ||||
| 20 | WP854334 | Seal, Rubber (Replaces: 7208P011-60) | 10 |
|
$ 11.95 | ||||
| 21 | 7103P045-60 | Nut, Nylon | 10 |
|
- | ||||
| 22 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 10 |
|
$ 15.94 | ||||
| 23 | 7101P321-60 | Screw | 10 |
|
- | ||||
| 23 | 7706P294-60 | Frame, Door (blk) | 10 |
|
- | ||||
| 24 | 7744P128-60 | Trim, Door (upper-blk) | 10 |
|
- | ||||
| 25 | W11233072 | Screw (Replaces: 7101P290-60) | 10 |
|
Immediately | $ 12.62 | |||
| 26 | 7101P329-60 | Screw | 10 |
|
- | ||||
| 27 | 2404F044-80 | Lining | 10 |
|
- |
