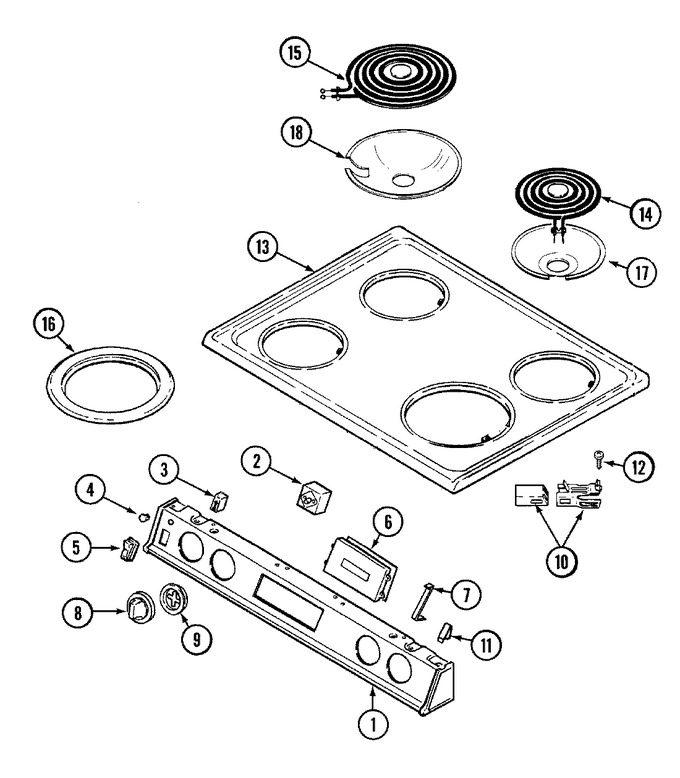

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74001649		Panel, Upper Front (wht)	10	Appelez-nous	-
2	WP7403P238-60		Switch, Infinite (sml Element)   (Replaces: 7403P238-60)	10		Immediately	$ 57.78
2	WP7101P309-60		Screw   (Replaces: 7101P309-60)	10		Immediately	$ 6.26
2	WP7403P239-60		Switch, Infinite (lrg Element)   (Replaces: 7403P239-60)	10		Immediately	$ 35.10
3	W10852510		Light, Indicator   (Replaces: 7407P102-60)	10			$ 106.11
4	W11690131		Lens, Indicator Light   (Replaces: 7730P012-60)	10			$ 6.73
5	7403P200-60		Switch, Rocker (wht)	10	Appelez-nous	-
6	74001641		Clock (wht)	10	Appelez-nous	-
7	74003191		Bracket, Clock	10	Appelez-nous	-
7	WP59002061		Screw (6abx38-zn)   (Replaces: 7101P077-60)	10			$ 6.98
8	7731P081-60		Knob, Switch (wht)	10	Appelez-nous	-
9	7740P067-60		Bezel, Knob (wht)	10	Appelez-nous	-
10	12001676		Kit, Receptacle   (Replaces: 1430306K)	10		Immediately	$ 28.45
11	7112P087-60		Clip, Top Locking	10	Appelez-nous	-
12	WP74004005		Screw   (Replaces: 7118P013-60)	10			$ 6.95
13	74001248		Top Assy. (wht)	10	Appelez-nous	-
14	74001780		Element (6``) (1500watt) (blk)	10	Appelez-nous	-
14	WP12001559		Element, Surface (6``)   (Replaces: 74004090)	27			$ 141.24
14	WPW10259868		Kit, Element (6`` Blk. Med.)   (Replaces: 12001231)	26		Immediately	$ 112.28
15	WP12001560		Element, Surface (8``)   (Replaces: 74004089)	27			$ 172.17
15	WP12001560		Kit, Element (8`` Blk. Med.)   (Replaces: 12001230)	26			$ 172.17
15	74001781		Element (8``) (2600watt) (blk)	10	Appelez-nous	-
16	7744P130-60		Ring, Trim (6``)	10	Appelez-nous	-
16	19950051A		Ring, Trim (8``)   (Replaces: 7744P131-60)	10			$ 14.92
17	W10291024		Bowl, Drip (6`` Gry)   (Replaces: 74001519)	10		Immediately	$ 49.90
17	W10291024		Bowl, Drip (6`` Gry-solid)   (Replaces: 74003440)	22		Immediately	$ 49.90
18	W10291024		Bowl, Drip (8`` Gry-solid)   (Replaces: 74003441)	22		Immediately	$ 49.90
18	W10291024		Bowl, Drip (8`` Gry)   (Replaces: 74001518)	10		Immediately	$ 49.90
NI	5170P228-60		Harness, Sensor & Lock	10	Appelez-nous	-
NI	74001596		Harness, Wire Control Panel	10	Appelez-nous	-
NI	8111P025-60		Manual, Use & Care	10	Appelez-nous	-
NI	16000327		Guide, Quick Ref. - Maytag	10	Appelez-nous	-
NI	74001672		Wires, Loose	10	Appelez-nous	-
NI	74001583		Harness, Clock/relay	10	Appelez-nous	-
NI	74001589		Harness, Wire Control/top	10	Appelez-nous	-
