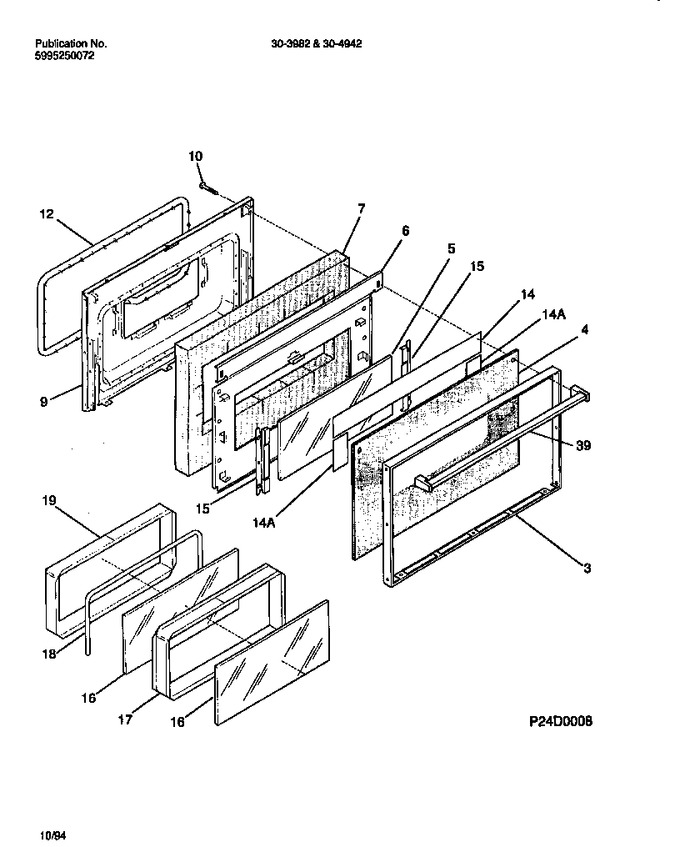

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303209518		Trim-oven Door (black)		Appelez-nous	-
4	316019706		Glass-oven Door, Black, Outer		Appelez-nous	-
5	5303209513		Glass-oven Door, Inner		Appelez-nous	-
6	5303211084		Shield-insulation		Appelez-nous	-
7	5303209514		Insulation-oven Door		Appelez-nous	-
9	5303209515		Liner-oven Door		Appelez-nous	-
10	316001001		Screw-handle Mtg, Wafer Head, 10-24 X 3.375		Appelez-nous	-
12	5303131601		Seal-oven Door				$ 374.63
14	5303208656		Reflector, Aluminum Foil		Appelez-nous	-
15	5303209510		Bracket-glass Mtg		Appelez-nous	-
16	5303209512		Glass-oven Door, Heat Barrier, (2)				$ 150.41
17	5303209517		Spacer-glass		Appelez-nous	-
18	5303211085		Seal - Rope, .25 Dia				$ 44.00
19	5303209511		Collar-glass Mtg		Appelez-nous	-
39	316008302		Handle-door, Oven		Appelez-nous	-
*23403	5303212671		Screw, Cr Pan Hd Sems, 8, 32(bp) X 1		Appelez-nous	-
*23404	5303212762		Screw,8-18 X 1/2		Appelez-nous	-
*23405	5303269859		Screw 8-18 X 1/2 Black		Appelez-nous	-
*23406	5303271648		Screw, Wafer Hd Sq Dr, 8-18(ab) X 1/2			Immediately	$ 13.46
14A	5303208655		Reflector, Aluminum Foil		Appelez-nous	-
39A	5303212671		Screw, Cr Pan Hd Sems, 8-32(bp) X 1 (non-illustrated)		Appelez-nous	-
39B	5303212762		Screw, 8-18 X 1/2, (non-illustrated)		Appelez-nous	-
39C	5303269859		Screw, 8-18 X 1/2, Black (non-illustrated)		Appelez-nous	-
39D	5303271648		Screw, Wafer Hd Sq Dr, 8-18(ab) X 1/2, (non-illustrated)			Immediately	$ 13.46

    View Diagram in Separate Window       Print Part List
