01 - Body
02 - Door/drawer (ser. Pre. 10)
03 - Door/drawer (ser. Pre. 11)
04 - Internal Controls
05 - Oven/base
06 - Top Assembly
07 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

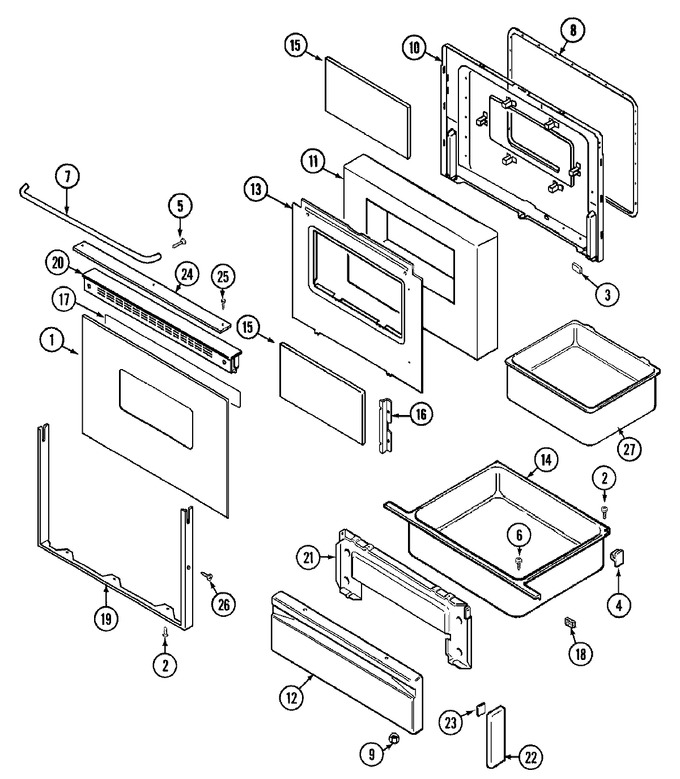

| 1 | 7902P360-60 | Glass, Door (wht) | 11 |
|
- | ||||
| 2 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 11 |
|
Immediately | $ 12.62 | |||
| 3 | 8010P085-60 | Spacer, Rubber | 11 |
|
- | ||||
| 4 | 74003566 | Roller, Drawer | 28 |
|
- | ||||
| 4 | WP488130 | Nut (Replaces: 7103P082-60) | 28 |
|
$ 6.27 | ||||
| 4 | 8004P026-60 | Support, Drawer (rear) | 11 |
|
$ 9.29 | ||||
| 5 | 7101P326-60 | Screw | 11 |
|
- | ||||
| 6 | WP7101P072-60 | Screw (Replaces: 7101P072-60) | 11 |
|
$ 6.77 | ||||
| 7 | 7701P150-60 | Handle, Oven Door (wht) | 11 |
|
- | ||||
| 8 | WPW10162384 | Gasket, Door (Replaces: 7201P046-60) | 11 |
|
Immediately | $ 77.61 | |||
| 9 | WPW10131078 | Nut, Lock (Replaces: 7103P139-60) | 11 |
|
$ 4.00 | ||||
| 10 | WP7103P114-60 | Nut, Snap (round-wht) (Replaces: 7103P039-60) | 11 |
|
$ 9.89 | ||||
| 10 | 7103P136-60 | Nut, Snap | 11 |
|
- | ||||
| 10 | WP7103P114-60 | Nut, Snap (Replaces: 7103P114-60) | 11 |
|
$ 9.89 | ||||
| 10 | 74003244 | Lining, Door | 27 |
|
- | ||||
| 10 | 2402W209-19 | Lining, Door | 11 |
|
- | ||||
| 11 | 74001842 | Insulation, Door | 11 |
|
- | ||||
| 12 | 74003407 | Panel, Drawer (wht) | 28 |
|
- | ||||
| 12 | 2416W002-71 | Panel, Drawer (wht) | 11 |
|
- | ||||
| 13 | 74001843 | Baffle, Door | 11 |
|
- | ||||
| 14 | 71003042 | Drawer, Storage | 28 |
|
- | ||||
| 14 | 3405F018-80 | Drawer, Storage | 11 |
|
- | ||||
| 15 | 74003320 | Glass, Inner | 26 |
|
$ 86.35 | ||||
| 15 | 74001841 | Glass, Inner | 11 |
|
- | ||||
| 16 | 74001844 | Retainer, Glass | 11 |
|
- | ||||
| 17 | 8270P078-60 | Tape, Foil (29 1/2``) | 11 |
|
- | ||||
| 18 | 74003986 | Spacer, Glass (Replaces: 8010P016-60) | 11 |
|
$ 13.08 | ||||
| 19 | 7706P310-60 | Frame, Door (wht) | 11 |
|
- | ||||
| 20 | 7706P306-60 | Trim, Door (upper-wht) | 11 |
|
- | ||||
| 20 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 11 |
|
Immediately | $ 12.62 | |||
| 21 | 74001464 | Lining, Drawer----na | 11 |
|
- | ||||
| 21 | 2404F030-51 | Lining, Drawer Panel | 28 |
|
- | ||||
| 22 | 7744P093-60 | End Cap (wht) | 11 |
|
- | ||||
| 23 | 8270P098-60 | Tape | 11 |
|
$ 5.02 | ||||
| 24 | 7728P094-60 | Insert, Door Trim (wht) | 11 |
|
$ 82.40 | ||||
| 25 | WP98008544 | Screw (1/2``-wht) (Replaces: 7101P373-60) | 11 |
|
$ 11.89 | ||||
| 25 | 74001278 | Screw (wht) | 11 |
|
$ 5.83 | ||||
| 26 | WP98008544 | Screw (1/2``-wht) (Replaces: 7101P373-60) | 11 |
|
$ 11.89 | ||||
| 27 | 74001458 | Basket, Drawer | 11 |
|
- |
