SELECT A DIAGRAM

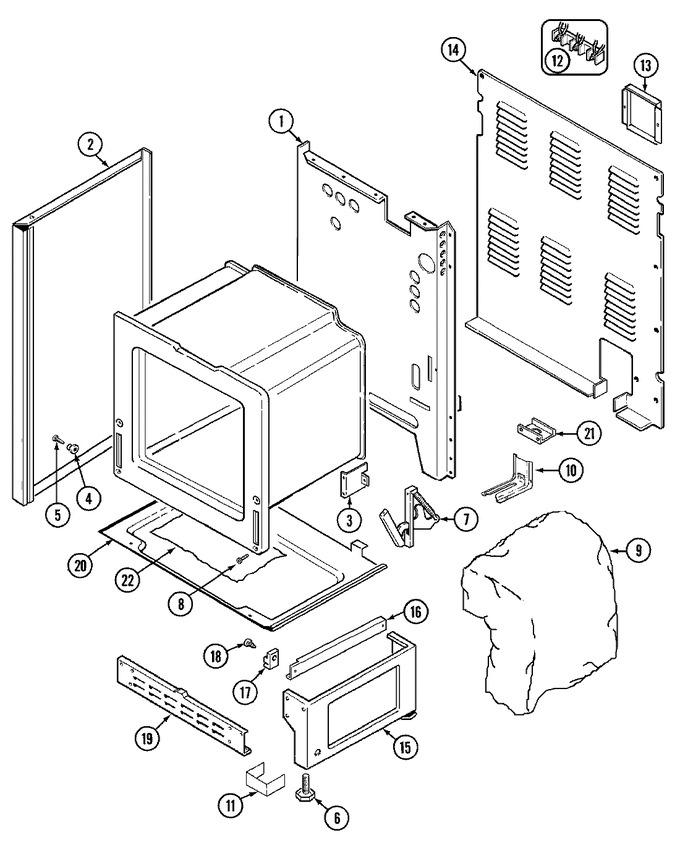

01 - Body


02 - Door/drawer


03 - Internal Controls


04 - Oven


05 - Top Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74001582		Back, Main	10	Appelez-nous	-
2	2618F106-71		Panel, Side (lt-wht)	10	Appelez-nous	-
2	2618F107-71		Panel, Side (rt-wht)	10	Appelez-nous	-
3	3807F400-51		Support,oven Rear	10	Appelez-nous	-
4	W10857933		Spacer, Side Panel   (Replaces: 8004P024-60)	10			$ 7.07
5	W11772394		Screw   (Replaces: 7101P334-60)	10		Immediately	$ 10.94
6	7101P316-60		Leg, Leveling	10	Appelez-nous	-
7	7106P056-60		Hinge	10	Appelez-nous	-
8	WP4159193		Screw   (Replaces: 7101P115-60)	10			$ 4.29
9	74001800		Insulation, Back	10	Appelez-nous	-
9	74001573		Insulation, Wrapper	10	Appelez-nous	-
10	WP7101P485-60		Screw, Bracket   (Replaces: 7101P289-60)	10			$ 26.33
10	WP3801F656-51		Bracket, Anti-tip   (Replaces: 3801F218-51)	10		Immediately	$ 4.69
11	4005F420-80		Cover, Leveling Leg	10	Appelez-nous	-
12	WPW10245259		Block, Terminal   (Replaces: 7401P039-60)	10		Immediately	$ 31.65
13	4005F427-51		Cover, Access	10	Appelez-nous	-
14	4005F447-51		Cover, Wire	10	Appelez-nous	-
15	74001705		Pedestal (sides)	10	Appelez-nous	-
16	3406F028-51		Runner, Drawer	10	Appelez-nous	-
17	8004P033-60		Support, Drawer	10	Appelez-nous	-
18	7101P103-60		Screw	10	Appelez-nous	-
19	4020F001-80		Pedestal, Front/rear	10	Appelez-nous	-
20	3804F112-51		Retainer, Insulation	10	Appelez-nous	-
21	3605F174-51		Plate, Conduit Tubing	10	Appelez-nous	-
22	8312P058-60		Foil, Insulation Retainer	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
