SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door

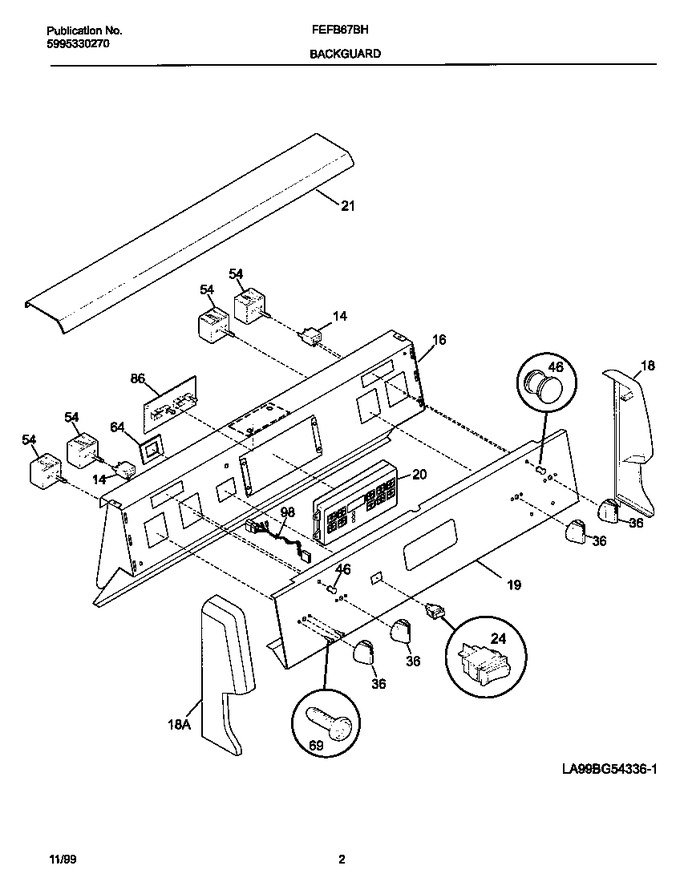

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
14	3200297		Light-lamp/indicator		Appelez-nous	-
16	318117426		Panel Control,instrument Mtg		Appelez-nous	-
18	318118305		End Cap,black ,lh		Appelez-nous	-
18	318118304		End Cap,black ,rh		Appelez-nous	-
19	318117182		Panel-control,black		Appelez-nous	-
20	318185806		Controller Electric Ay		Appelez-nous	-
21	318118011		Trim-canopy,black   (Replaces: 318118002)		Appelez-nous	-
24	5304527841		Switch-rocker, Oven Light, Black   (Replaces: 316005602)			Immediately	$ 11.38
36	318017111		Knob-control,black				$ 45.52
46	318228310		Lens-light/lamp, Indicator   (Replaces: 5303297274)			Immediately	$ 22.91
54	318120500		Switch-surface Unit				$ 186.80
64	318112200		Mtg Rocker Switch		Appelez-nous	-
69	5303288565		Screw, Switch Mtg., 8-32 X 3/16   (Replaces: 5303323134)				$ 3.12
86	318111201		Plate-connecting		Appelez-nous	-
98	318092405		Wiring Harness		Appelez-nous	-
*98280	08016432		Screw,truss Head ,8-18 X 0.375 ,(4)		Appelez-nous	-
*98281	5303310510		Screw <10-24 X 5/8 >				$ 14.18
*98282	154079601		Nut   (Replaces: 3201885)				$ 0.41

    View Diagram in Separate Window       Print Part List
