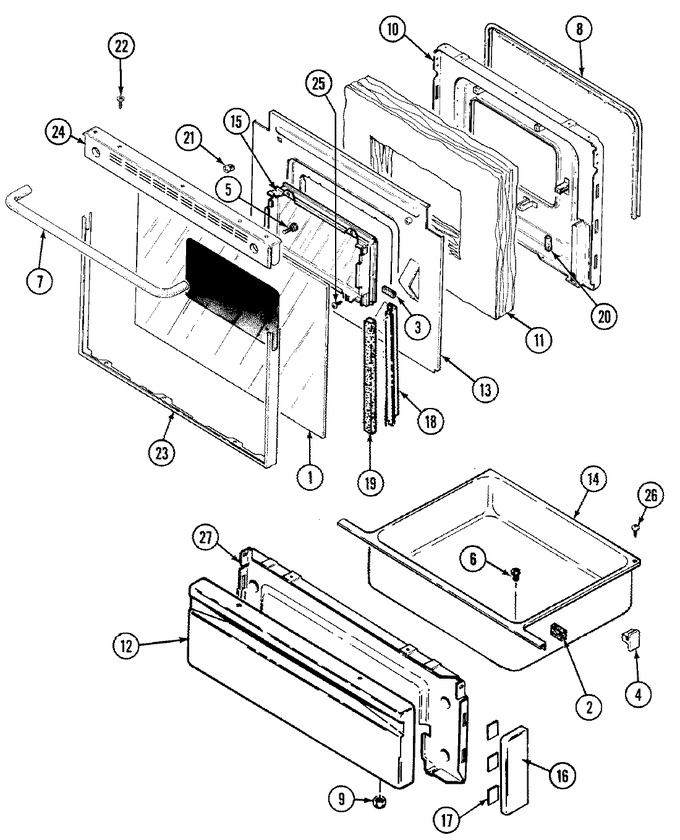

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7902P360-60		Glass, Door (wht)	10	Appelez-nous	-
1	8270P090-60		Tape, Foil (3`` Wide)	10	Appelez-nous	-
2	WP854334		Spacer, Rubber   (Replaces: 8010P086-60)	10			$ 11.95
3	8010P085-60		Spacer, Rubber	10	Appelez-nous	-
4	8004P026-60		Support, Drawer (rear)	10			$ 9.29
5	7101P326-60		Screw	10	Appelez-nous	-
6	WP4159193		Screw   (Replaces: 7101P115-60)	10			$ 4.29
7	7701P150-60		Handle, Oven Door (wht)	11	Appelez-nous	-
7	7701P128-60		Handle, Door----na	10	Appelez-nous	-
8	WPW10162384		Gasket, Door   (Replaces: 7201P046-60)	10		Immediately	$ 77.61
9	WPW10131078		Nut, Lock   (Replaces: 7103P085-60)	10			$ 4.00
10	2402W202-19		Lining, Door	10	Appelez-nous	-
11	4804F034-60		Insulation, Door	10	Appelez-nous	-
12	2416F047-71		Panel, Drawer (wht)	10	Appelez-nous	-
13	3601F232-45		Baffle, Door	10	Appelez-nous	-
14	3405F017-80		Drawer, Storage	10	Appelez-nous	-
15	3805F002-34		Clamp, Window Assy.	10	Appelez-nous	-
15	7907P021-60		Window Asy.	10	Appelez-nous	-
16	7744P090-60		End Cap, Drawer (wht)	10	Appelez-nous	-
17	8270P095-60		Tape, Double Sided	10	Appelez-nous	-
18	3818F052-51		Channel, Air	10	Appelez-nous	-
19	7208P002-60		Seal	10	Appelez-nous	-
20	WP854334		Seal, Rubber   (Replaces: 7208P011-60)	10			$ 11.95
21	7103P045-60		Nut, Nylon	10	Appelez-nous	-
22	WP98008544		Screw (wht)   (Replaces: 7101P308-60)	10			$ 11.89
23	7706P298-60		Frame, Door (wht)	10	Appelez-nous	-
23	7101P320-60		Screw (no.8 X 3/8``)	10	Appelez-nous	-
24	7744P115-60		Trim (wht)	13	Appelez-nous	-
24	7744P089-60		Trim, Top	10	Appelez-nous	-
25	W11233072		Screw   (Replaces: 7101P290-60)	10		Immediately	$ 12.62
26	7101P329-60		Screw	10	Appelez-nous	-
27	2404F037-80		Lining, Drawer	10	Appelez-nous	-
