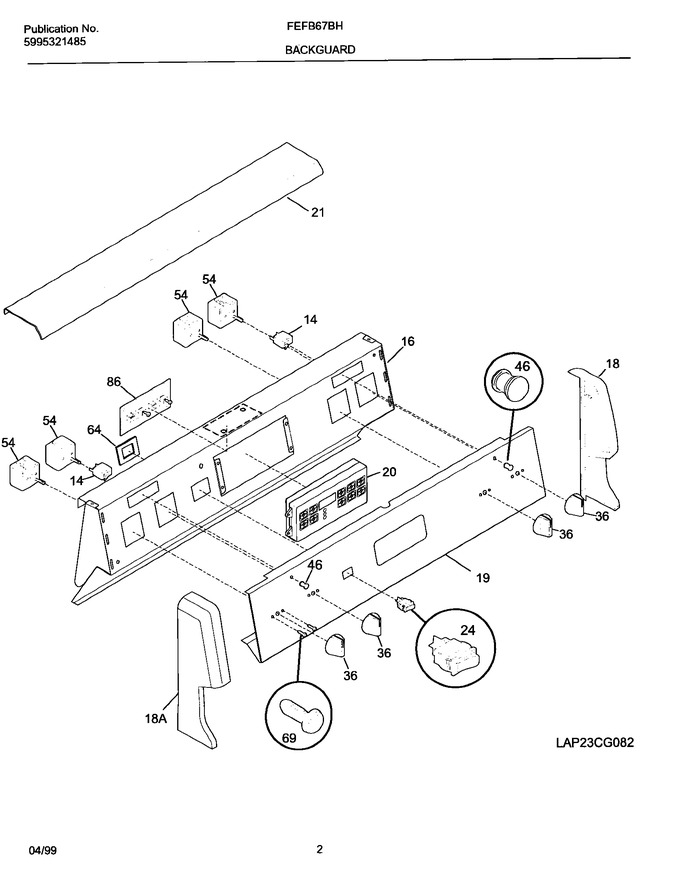

03 - Backguard


05 - Body


07 - Top/drawer


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
14	3200297		Light, Indicator		Appelez-nous	-
16	318117426		Plate, Instrument Mtg		Appelez-nous	-
18	318118304		End Cap,black ,rh		Appelez-nous	-
19	318117182		Panel-control,black		Appelez-nous	-
21	318118011		Trim-canopy,black   (Replaces: 318118002)		Appelez-nous	-
36	318017111		Knob-control,black				$ 45.52
46	318228310		Lens-light   (Replaces: 5303297274)			Immediately	$ 22.91
64	318112200		Spacer Rocker Switch		Appelez-nous	-
86	318111201		Plate-connecting		Appelez-nous	-
98	318092405		Wiring Harness		Appelez-nous	-
18A	318118305		End Cap,black ,lh		Appelez-nous	-
F20	318013006		Clock/timer, Electronic		Appelez-nous	-
F24	5304527841		Switch-rocker, Oven Light, Black   (Replaces: 316005602)			Immediately	$ 11.38
F54	318120500		Switch-surface Unit				$ 186.80
NI	08016432		Screw,8-18 X 3/8		Appelez-nous	-
NI	5303310510		Screw <10-24 X 5/8 >				$ 14.18
NI	5303288566		Screw-6-20 X 1/4   (Replaces: 5303320848)				$ 2.12
NI	154079601		Keps Nut 10-24   (Replaces: 3201885)				$ 0.41
NI	5303288565		Screw, 8-32 X 3/16   (Replaces: 5303323134)				$ 3.12
