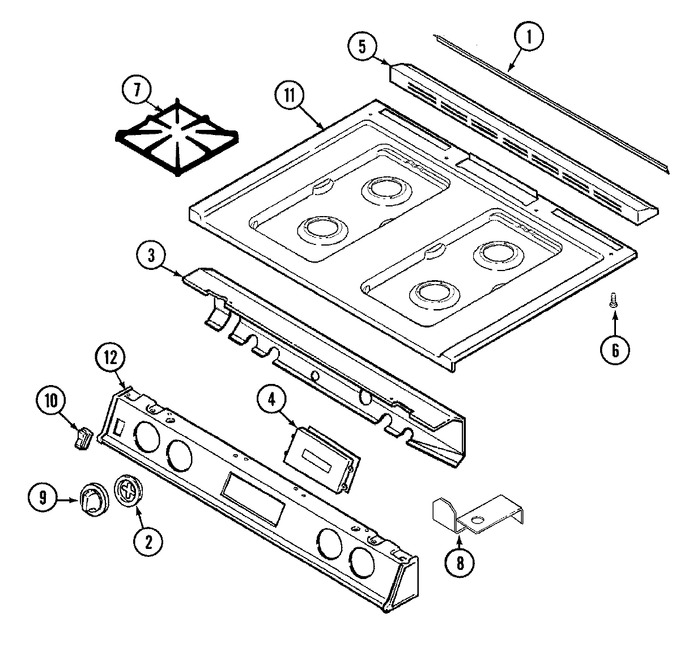

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7201P061-60		Gasket	10			$ 4.83
2	74002903		Bezel, Burner Knob (alm)	10	Appelez-nous	-
3	74001813		Support, Relay	18	Appelez-nous	-
3	WP59002061		Screw (6abx38-zn)   (Replaces: 7101P077-60)	18			$ 6.98
3	74001542		Cover, Manifold (rear)	10	Appelez-nous	-
3	74002588		Cover, Manifold (rear)	18	Appelez-nous	-
4	74002896		Clock (alm)	26	Appelez-nous	-
4	74003191		Bracket, Clock	10	Appelez-nous	-
4	74002898		Clock (alm)	10	Appelez-nous	-
4	WPY706189		Screw   (Replaces: 7101P346-60)	10		Immediately	$ 6.47
5	4825D001-59		Cover, Vent Trim	10	Appelez-nous	-
5	3601F221-45		Baffle, Vent Cover	10			$ 28.30
6	WP59002061		Screw (6abx38-zn)   (Replaces: 7101P077-60)	10			$ 6.98
7	74001059		Grate (blk)	23	Appelez-nous	-
7	74001059		Grate (blk)	30	Appelez-nous	-
7	2003W027-00		Grate (blk)	10	Appelez-nous	-
7	74001653		Grate (blk)	28	Appelez-nous	-
8	3801F318-51		Bracket, Top	10	Appelez-nous	-
9	7733P109-60		Knob, Valve (alm)	10	Appelez-nous	-
10	7403P358-60		Switch, Rocker (alm)	10	Appelez-nous	-
11	74001559		Top, Main (alm)	10	Appelez-nous	-
12	74002904		Panel, Manifold (alm)	10	Appelez-nous	-
12	WPY706189		Screw   (Replaces: 7101P346-60)	10		Immediately	$ 6.47
NI	5185D274-60		Harness	10	Appelez-nous	-
NI	5170P228-60		Harness, Sensor & Lock	10	Appelez-nous	-
NI	5170P184-60		Harness, Relay	10	Appelez-nous	-
NI	74002582		Manual, Use & Care	26	Appelez-nous	-
NI	74001181		Manual, Use & Care	10	Appelez-nous	-
NI	16000327		Guide, Quick Ref. - Maytag	10	Appelez-nous	-
NI	74001575		Harness, Control/relay	10	Appelez-nous	-
