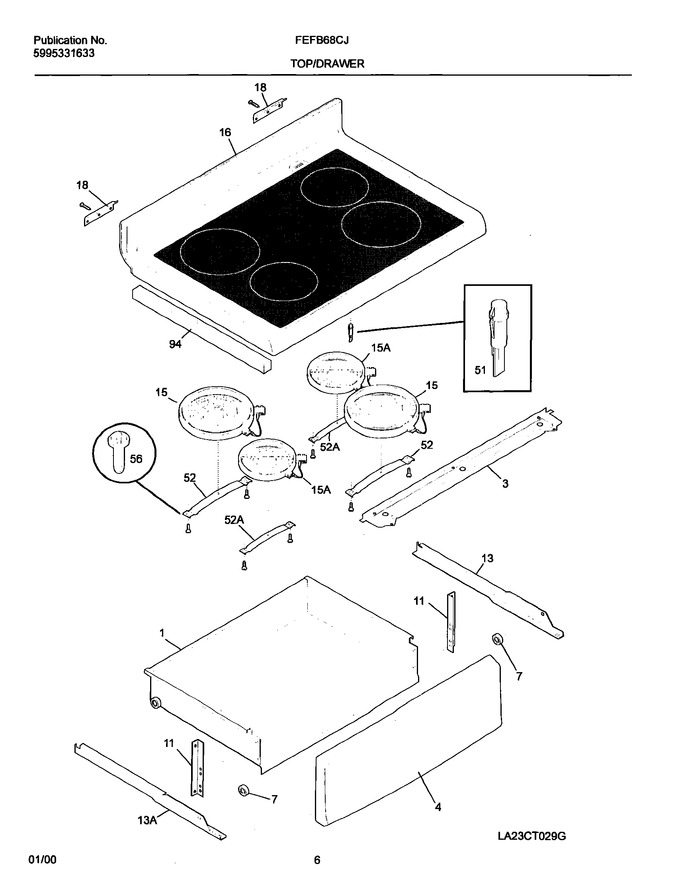

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304505701		Drawer-utility   (Replaces: 318107103)			Immediately	$ 143.39
3	318144321		Support-main Top		Appelez-nous	-
4	318044301		Panel-drawer,white		Appelez-nous	-
7	318014800		Spacer				$ 16.59
11	318107500		Bracket-support Drawer				$ 21.85
13	318018100		Channel-drawer,rh			Immediately	$ 30.01
16	318043879		Maintop, White		Appelez-nous	-
18	318074400		Hinge-main Top		Appelez-nous	-
52	318122007		Spring Element Mtg				$ 53.45
56	5304400427		Screw,6-20 X 1/2		Appelez-nous	-
94	318132608		Insulation-top		Appelez-nous	-
13A	318018101		Channel-drawer,lh				$ 63.11
52A	318122006		Spring Element Mtg				$ 66.25
F15	903118-9010		Element-surface 2400w   (Replaces: 318178101)			Immediately	$ 236.18
F15A	318198817		Element-surface 1500w   (Replaces: 318178100)			Immediately	$ 192.78
F51	5303297484		Light-indicator		Appelez-nous	-
NI	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
NI	5304400428		Screw (8-15 X 1/8 )				$ 5.40
NI	131202300		Screw, 8 X 5/8   (Replaces: 3131048)			Immediately	$ 13.46
