SELECT A DIAGRAM

01 - Body

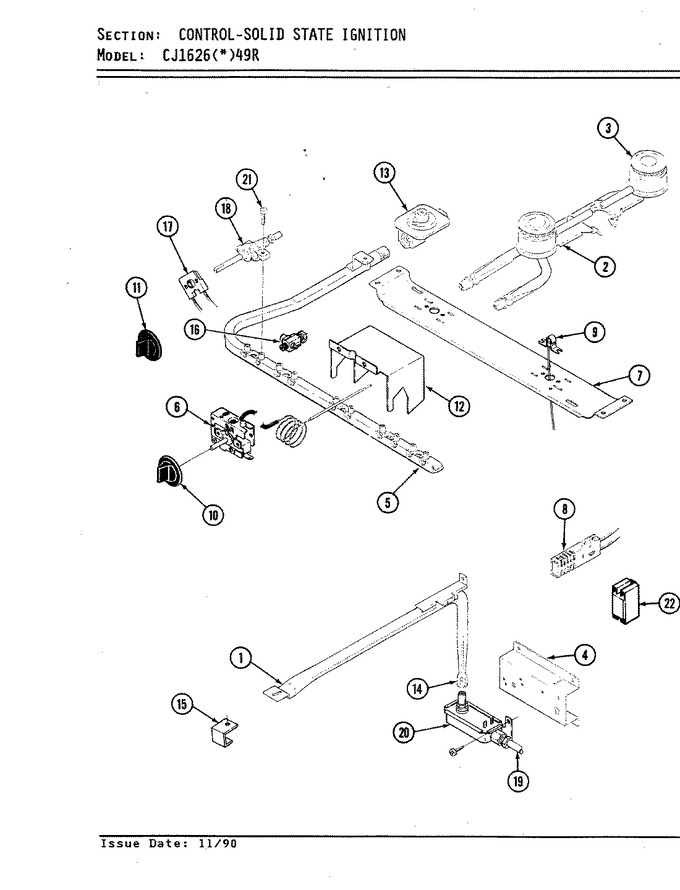

02 - Control System (cj1626x49r)


03 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3403A017-45		Burner, Oven	1	Appelez-nous	-
2	7505P173-60		Burner, Top (frt)	1	Appelez-nous	-
3	7505P172-60		Burner, Top (rear)	1	Appelez-nous	-
4	3807F369-45		Support, Oven Valve	1	Appelez-nous	-
5	7513P129-60		Pipe, Manifold	4	Appelez-nous	-
5	7513P100-60		Pipe, Manifold	1	Appelez-nous	-
5	7513P143-60		Pipe, Manifold	15	Appelez-nous	-
6	7404P062-60		Thermostat, Oven	1	Appelez-nous	-
6	W10828565		Screw, Black   (Replaces: 7101P270-60)	1			$ 6.70
7	3807F354-80		Support, Top Burner	1	Appelez-nous	-
8	12400035		Igniter, Oven   (Replaces: 7432P067-60)	1		Immediately	$ 60.44
9	7432P029-60		Igniter, Top Burner (lt)	1	Appelez-nous	-
9	7432P028-60		Igniter, Top Burner (rt)	1	Appelez-nous	-
10	7731P040-60		Knob, Thermostat	1	Appelez-nous	-
11	7733P015-60		Knob, Valve	1	Appelez-nous	-
12	4005F320-51		Cover, Thermostat	1	Appelez-nous	-
13	7510P022-60		Regulator Pressure	1	Appelez-nous	-
14	3411F006-35		Mixer, Air	1	Appelez-nous	-
15	3807F336-51		Support, Burner	1	Appelez-nous	-
16	7502P002-60		Valve, Shut Off	1	Appelez-nous	-
17	7403P216-60		Switch, Top Burner	4	Appelez-nous	-
17	7403P285-60		Switch, Igniter	12			$ 54.75
17	WP7403P190-60		Switch, Burner   (Replaces: 7403P190-60)	1			$ 118.82
18	7502P127-60		Valve, Top Burner	1	Appelez-nous	-
18	7502P167-60		Valve, Burner	4	Appelez-nous	-
18	7502P187-60		Valve, Burner	15	Appelez-nous	-
18	7502P237-60		Valve, Burner	13	Appelez-nous	-
19	3414F085-44		Tubing, Oven (3/8``)	1	Appelez-nous	-
20	7501P015-60		Valve, Oven (natural)	1	Appelez-nous	-
20	7501P106-60		Valve, Oven	7	Appelez-nous	-
21	7101P296-60		Screw	4	Appelez-nous	-
21	7101P044-60		Screw, Valve	15	Appelez-nous	-
21	7101P043-60		Screw, Control Valve	1	Appelez-nous	-
22	7431P006-60		Module, Spark	1	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
