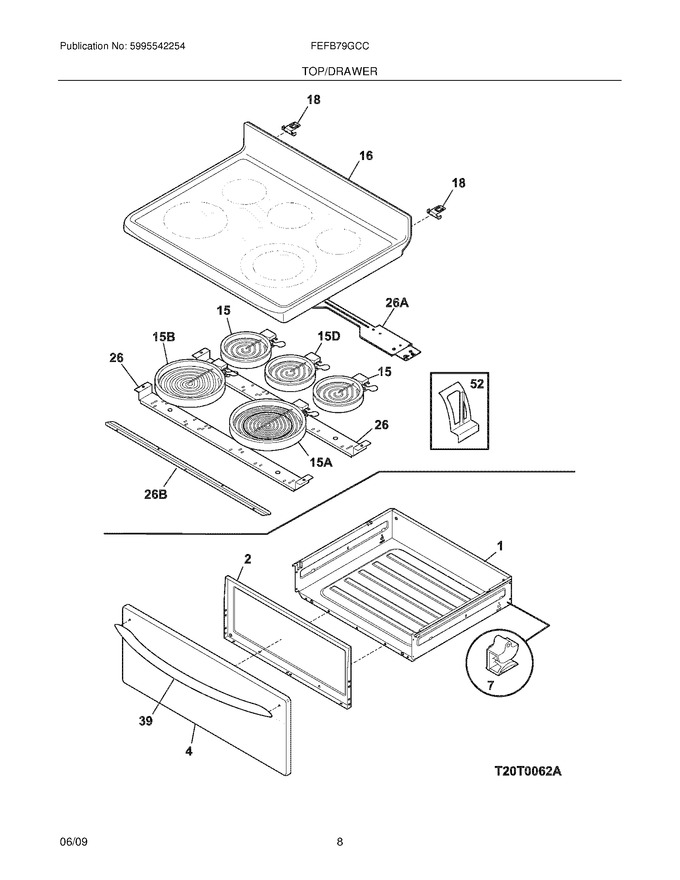

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408706		Drawer,utility   (Replaces: 316408703)			Immediately	$ 110.61
2	5304527989		Liner,drawer   (Replaces: 316403300)				$ 28.83
4	5304523142		Panel,drawer Front ,stainless   (Replaces: 316409413)				$ 279.25
7	316407402		Glide,drawer ,rear   (Replaces: 316407400)			Immediately	$ 9.86
16	316456253		Main Top,smooth Top ,black				$ 478.51
18	316436600		Hinge Bracket,maintop ,(2)				$ 45.36
26	316427600		Channel,element Support ,(2)		Appelez-nous	-
39	316246105		Handle,door/drawer ,stainless   (Replaces: 316246100)				$ 145.31
52	316461700		Clip,element Mtg				$ 12.05
26A	316498200		Bracket-support,chassis ,aluminum				$ 52.33
26B	316214202		Bracket,chassis Support ,front				$ 25.41
F15	318178110		Element,surface ,small/6`` ,1200 W   (Replaces: 318198846)			Immediately	$ 122.86
F15A	316545601		Element,dual ,9``/6`` ,surface ,2500w ,radiant				$ 311.81
F15B	316135401		Element,surface ,9`` ,2500 W ,radiant			Immediately	$ 80.96
F15D	140273621015		Element,surface ,warmer ,100 W   (Replaces: 318198832)			Immediately	$ 35.77
FNI	316510652		Harness-wiring,surface		Appelez-nous	-
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	5308014215		Screw`6-20 X 0.312				$ 2.28
NI	316468100		Cleaner,smoothtop ,w/sponge				$ 4.88
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
