SELECT A DIAGRAM

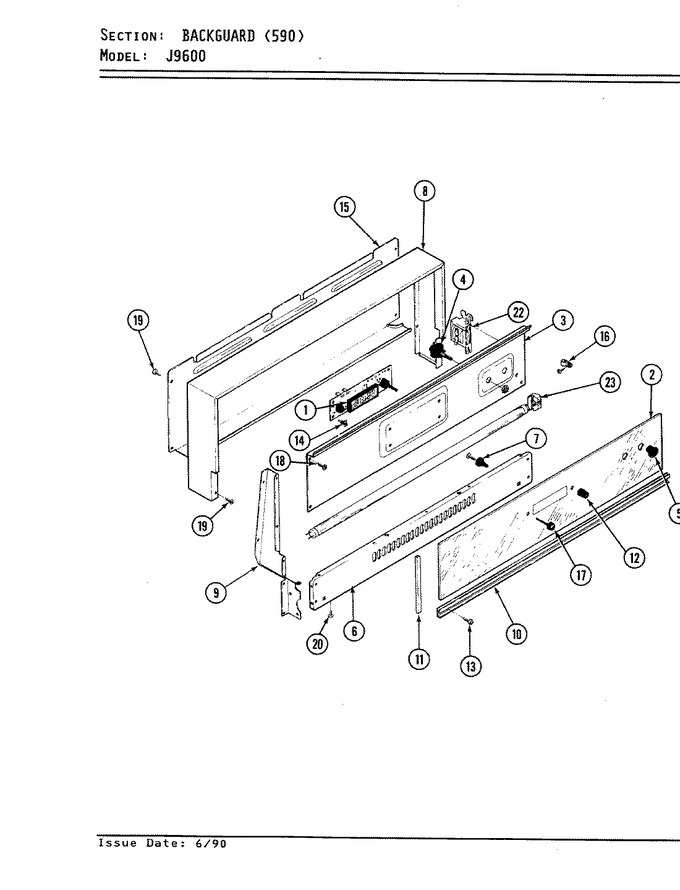

01 - Body


02 - Control Panel (-590 Model)


03 - Door/drawer


04 - Top Assy.\control System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP8312P015-60		Shaft, Bit Generator   (Replaces: 8312P015-60)	1			$ 0.81
1	7401P013-60		Block, Disconnect	1	Appelez-nous	-
1	7602P095-60		Clock	1	Appelez-nous	-
2	7910P016-60		Glass, Backguard	1	Appelez-nous	-
3	3807F385-51		Support, Clock	1	Appelez-nous	-
4	7403P109-60		Switch, Push (blk)	1	Appelez-nous	-
4	7403P133-60		Switch----na	1	Appelez-nous	-
5	7214P007-60		Sleeve, Switch (blk)	1	Appelez-nous	-
6	2620W044-90		Panel, Bkgd. Lwr (black)	1	Appelez-nous	-
7	7105P002-60		Support, Main Top	1	Appelez-nous	-
8	4005F073-80		Cover, Bottom Bkgd Wire	1	Appelez-nous	-
8	3603F026-70		Frame Bkgd	1	Appelez-nous	-
9	3807F342-51		Support, Backguard (left)	1	Appelez-nous	-
9	3807F341-51		Support, Bkgd (right)	1	Appelez-nous	-
10	7716P017-60		Trim, Backguard Bottom	1	Appelez-nous	-
11	7742P001-60		Trim, Glass Retainer	1	Appelez-nous	-
12	7711P172-60		Knob, Clock (blk)	1			$ 23.55
13	7101P158-60		Screw, Bkgd Trim Bottom	1	Appelez-nous	-
14	8010P037-60		Fastener, Spacer	1	Appelez-nous	-
15	4005F213-51		Cover, Bkgd Wires	1	Appelez-nous	-
16	7111P002-60		Clamp, Wire 3/4	1	Appelez-nous	-
17	7711P171-60		Knob, Clock (button-blk)	1			$ 19.90
18	7101P163-60		Screw, No.6 X3/8	1	Appelez-nous	-
19	W11233072		Screw (zinc)   (Replaces: 7101P041-60)	1		Immediately	$ 12.62
20	W11233072		Screw   (Replaces: 7101P147-60)	1		Immediately	$ 12.62
21	WPY0067945		Bulb, Fluorescent Light   (Replaces: 7407P038-60)	1			$ 29.33
22	7412P007-60		Ballast	1	Appelez-nous	-
23	5700A252-60		Socket Assy (32``&38``lead)	1	Appelez-nous	-
23	5700A251-60		Socket Assy (10`` Lead)	1	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
