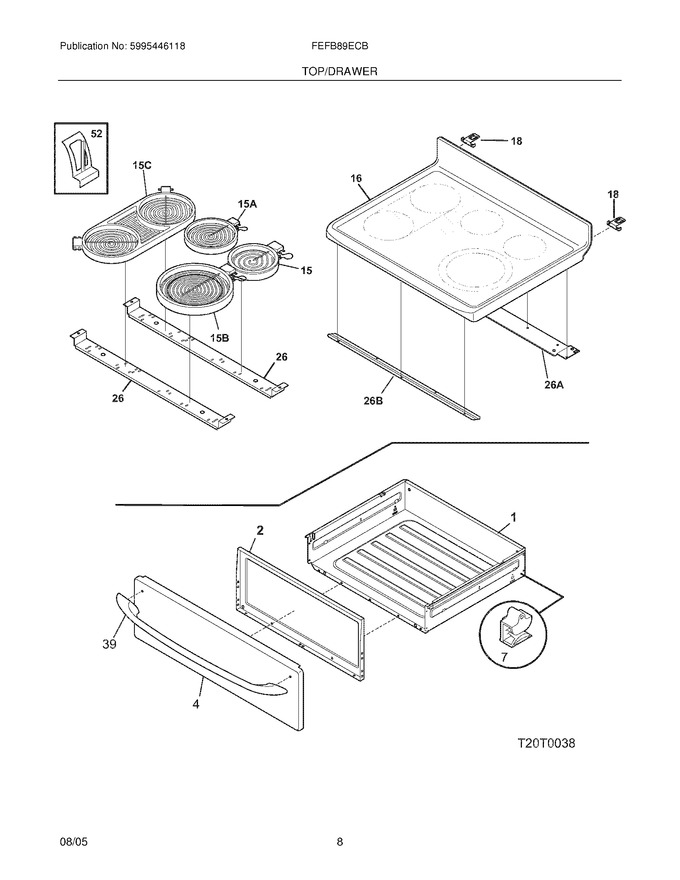

SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Body


07 - Top/drawer


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408706		Drawer,utility   (Replaces: 316408701)			Immediately	$ 110.61
2	5304527989		Liner,drawer   (Replaces: 316403300)				$ 28.83
4	5304523142		Panel,drawer Front ,stainless   (Replaces: 316409405)				$ 279.25
7	316407402		Glide,drawer ,rear   (Replaces: 316407400)			Immediately	$ 9.86
16	316421263		Maintop,frame/glass ,black		Appelez-nous	-
18	316436600		Hinge Bracket,maintop ,(2)				$ 45.36
26	316427600		Channel,element Support ,(2)		Appelez-nous	-
39	316246105		Handle,door/drawer ,stainless   (Replaces: 316246100)				$ 145.31
52	316278300		Clip,element Mtg		Appelez-nous	-
26A	316099202		Bracket,chassis Support ,rear		Appelez-nous	-
26B	316214200		Bracket,chassis Support ,front		Appelez-nous	-
F15	318198817		Element,surface ,6`` ,1200 W ,radiant   (Replaces: 316010205)			Immediately	$ 192.78
F15A	318198825		Element,surface ,warmer ,100 W				$ 191.21
F15B	316282100		Element,surface ,dual ,1700w/2700w   (Replaces: 316216600)			Immediately	$ 249.27
F15C	316280701		Element,double 6`` ,surface ,4400w ,w/bridge   (Replaces: 316280700)				$ 273.34
NI	316416858		Harness,wiring ,surface		Appelez-nous	-
NI	316264000		Cleaner,cooktop		Appelez-nous	-
NI	316279700		Cleaner,stainless Steel		Appelez-nous	-
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	5308014215		Screw`6-20 X 0.312				$ 2.28
