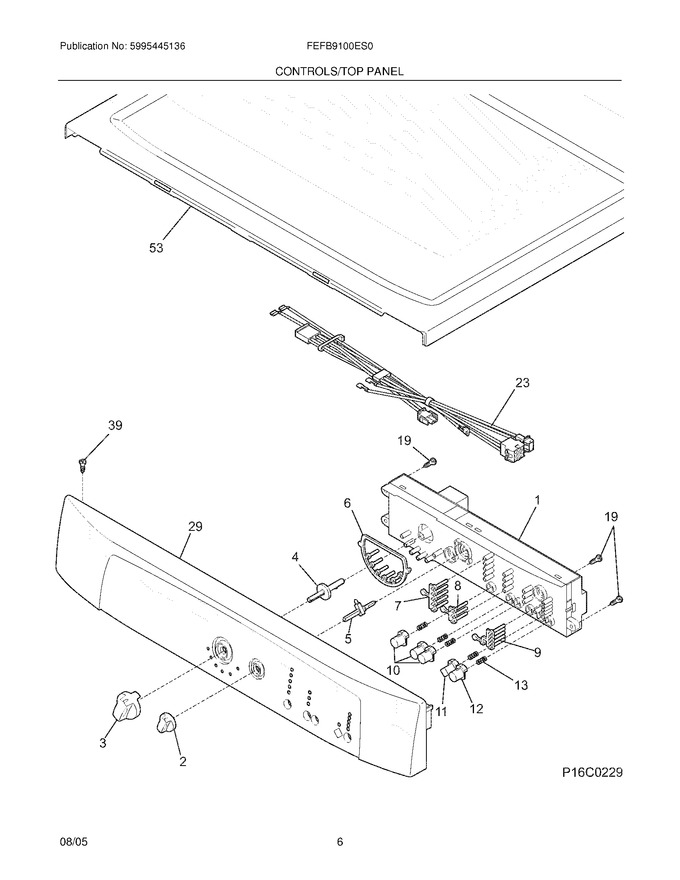

07 - Controls/top Panel


09 - Motor


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	134432000		Knob,function				$ 43.42
3	134431800		Knob,program				$ 43.10
4	134347700		Pin,program Knob				$ 19.74
5	134347300		Pin,function Knob				$ 11.60
6	134447600		Light Pipe,array ,9 Curved Prgm.		Appelez-nous	-
7	134429100		Light Pipe,array ,1 Row Of 5				$ 130.57
8	134429200		Light Pipe,array ,2 Row Of 4				$ 12.97
9	134429400		Light Pipe,array ,4 Start Group				$ 13.39
10	134385100		Push Button,function				$ 13.76
11	134385201		Push Button,start				$ 13.70
12	134385301		Push Button,pause				$ 32.97
13	134349400		Spring,push Button				$ 9.14
19	134402900		Screw,phillips Pan Hd ,6-19 X 0.650 ,type P				$ 29.77
29	134442400		Panel,control Console		Appelez-nous	-
39	134178901		Screw,8-18ab X 0.455				$ 14.89
53	134365000		Panel,work Top ,white		Appelez-nous	-
F1	134484212		Control Board,printed Circuit ,with Housing			Immediately	$ 382.87
F23	134394400		Wiring Harness,controls				$ 119.23
NI	134394200		Wiring Harness,main				$ 170.94
