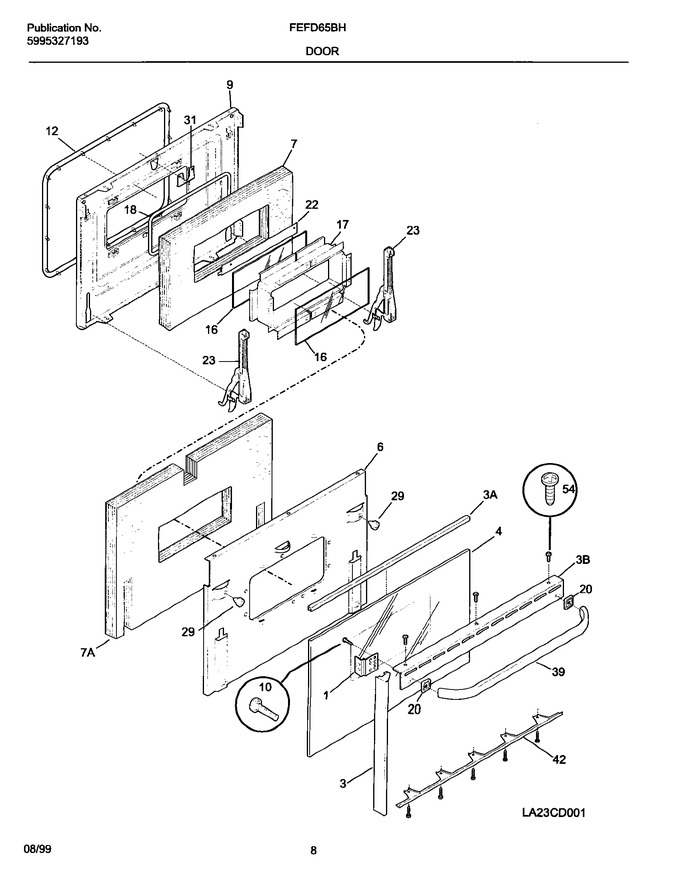

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318043100		Bracket-trim,handle				$ 52.87
3	318049201		Trim,oven Door ,black ,side		Appelez-nous	-
4	318041129		Glass-oven Door,black ,outer		Appelez-nous	-
6	5303311192		Shield-wool		Appelez-nous	-
7	5303310532		Insulation-door		Appelez-nous	-
9	318112906		Liner-oven Door		Appelez-nous	-
10	732022890		Screw, 10-24 X 5/8   (Replaces: 5303324305)			Immediately	$ 1.84
12	318053103		Seal-oven Door			Immediately	$ 150.03
16	5303310533		Glass-oven Door, Heat Barrier				$ 220.55
17	318139000		Spacer-glass		Appelez-nous	-
18	5303310531		Seal-rope		Appelez-nous	-
20	318014300		Spacer-handle,black				$ 36.44
22	5303310511		Retainer-glass		Appelez-nous	-
23	318024700		Hinge		Appelez-nous	-
29	5303310535		Bumper Door		Appelez-nous	-
31	5303310536		Latch-door				$ 30.66
39	316091118		Handle-door, Black, Oven		Appelez-nous	-
42	5303311200		Trim,oven Door ,black ,lower		Appelez-nous	-
54	5303308456		Screw, 8-18 X1/2 Blk				$ 10.06
3A	318028900		Trim-oven Door,upper				$ 34.82
3B	318049019		Trim,oven Door ,black ,upper		Appelez-nous	-
7A	5303311150		Insulation, Oven Door		Appelez-nous	-
NI	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
NI	08016432		Screw,8-18 X 3/8		Appelez-nous	-
NI	3201899		Washer,hinge Assy		Appelez-nous	-
