SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Body

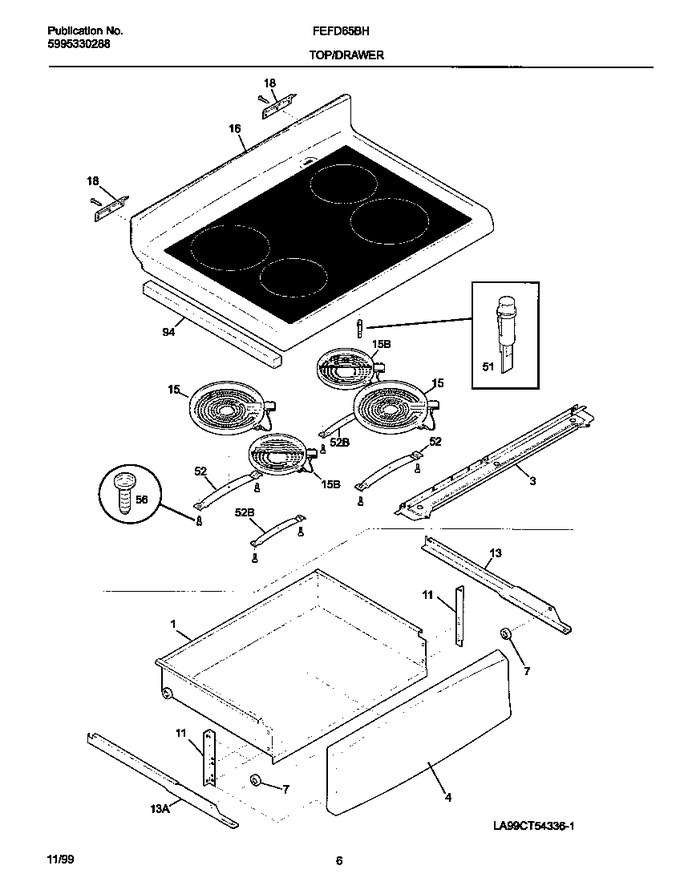

04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304505701		Drawer-utility   (Replaces: 318107103)			Immediately	$ 143.39
3	318144321		Support-main Top		Appelez-nous	-
4	318044302		Panel-drawer,almond		Appelez-nous	-
7	318014800		Spacer				$ 16.59
11	318107500		Bracket-support,drawer ,(2)				$ 21.85
13	318018100		Channel-drawer,rh			Immediately	$ 30.01
13	318018101		Channel-drawer,lh				$ 63.11
15	318198817		Element-surface,radiant ,small/6 Inch ,1200w,1200w ,smal   (Replaces: 318178100)			Immediately	$ 192.78
15	903118-9010		Element-surface,radiant ,2100w ,2100w ,large   (Replaces: 318178101)			Immediately	$ 236.18
16	318043868		Main Top,glass		Appelez-nous	-
18	318074400		Hinge-main Top,(2)		Appelez-nous	-
51	5303297484		Light-indicator, Hot Surface		Appelez-nous	-
52	318122006		Spring-element Mtg,1200w & 1800w ,small				$ 66.25
52	318122007		Spring-element Mtg,2100w ,large				$ 53.45
56	5304400427		Screw,6-20 X 1/2		Appelez-nous	-
94	318132608		Insulation-top		Appelez-nous	-
*04132	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*04133	5304400428		Screw (8-15 X 1/8 )				$ 5.40
*04134	131202300		Screw, 8 X 5/8   (Replaces: 3131048)			Immediately	$ 13.46
*04135	5303300265		Screw, 8-18 X 1/2				$ 15.17

    View Diagram in Separate Window       Print Part List
