01 - Cover


03 - Backguard


05 - Body


07 - Top/drawer


09 - Door

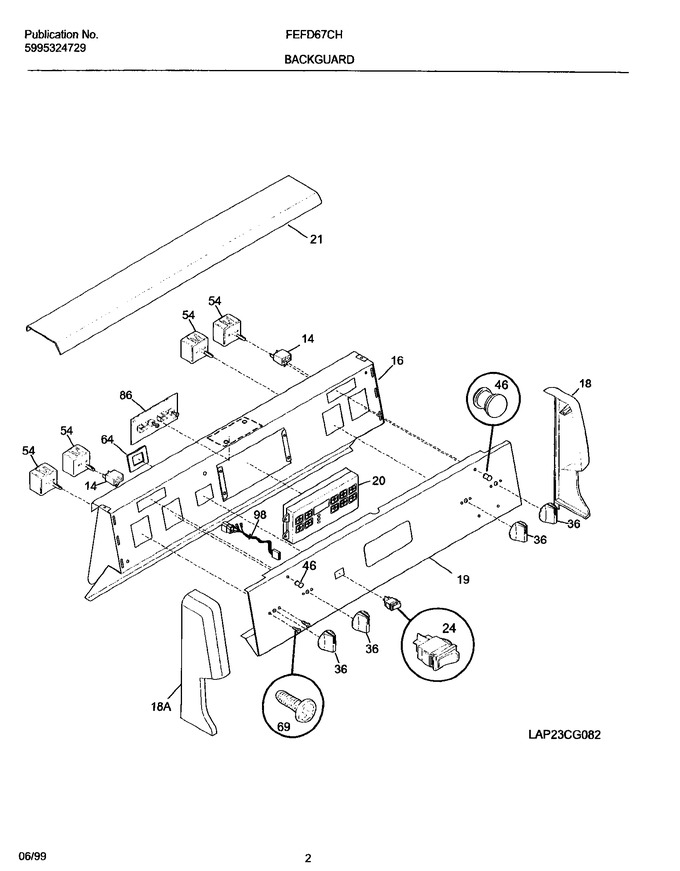

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
14	3200297		Light, Indicator		Appelez-nous	-
16	318117426		Plate, Instrument Mtg		Appelez-nous	-
18	318118300		End Cap,white ,rh		Appelez-nous	-
19	318117186		Panel-control,white		Appelez-nous	-
21	318118000		Trim-canopy/shield,white		Appelez-nous	-
36	318017110		Knob,control ,white				$ 43.00
46	318228310		Lens-light   (Replaces: 5303297274)			Immediately	$ 22.91
64	318112200		Spacer Rocker Switch		Appelez-nous	-
69	5303288565		Screw, Switch Mtg., 8-32 X 3/16   (Replaces: 5303323134)				$ 3.12
86	318111201		Plate-connecting		Appelez-nous	-
98	318092405		Wiring Harness		Appelez-nous	-
18A	318118301		End Cap,white ,lh		Appelez-nous	-
F20	318013011		Electronic Timer		Appelez-nous	-
F24	5304527842		Switch-oven Light, Rocker Type   (Replaces: 316005607)			Immediately	$ 16.13
F54	318120500		Switch-surface Unit				$ 186.80
NI	08016432		Screw,8-18 X 3/8		Appelez-nous	-
NI	5303310510		Screw <10-24 X 5/8 >				$ 14.18
NI	154079601		Nut,keps ,10-24   (Replaces: 3201885)				$ 0.41
