SELECT A DIAGRAM

01 - Body

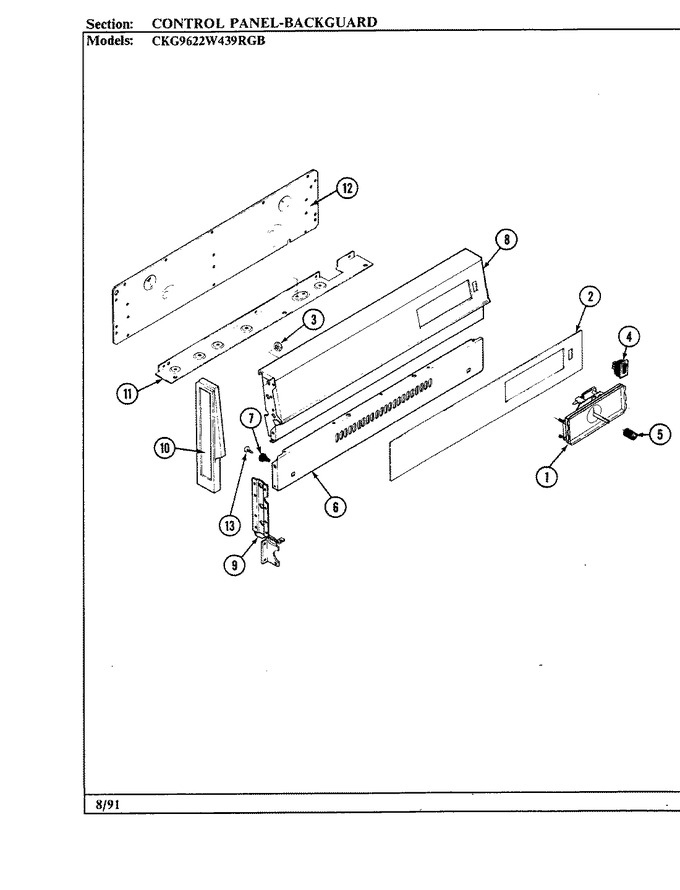

02 - Control Panel


03 - Door/drawer


04 - Gas Controls


05 - Oven


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7902P108-60		Glass, Clock	1	Appelez-nous	-
1	7602P102-60		Clock	1	Appelez-nous	-
2	7703P312-60		Trim, Inlay	1	Appelez-nous	-
3	7103P053-60		Nut, Push-on End Cap	1	Appelez-nous	-
4	7403P200-60		Switch, Rocker (wht)	1	Appelez-nous	-
5	7711P419-60		Knob, Clock (wht)	1	Appelez-nous	-
6	WP7101P126-60		Screw   (Replaces: 7101P058-60)	1		Immediately	$ 6.85
6	2620W053-19		Panel, Backguard (lower)	1	Appelez-nous	-
7	8010P069-60		Spacer, Hinge (main Top)	1			$ 8.57
8	2601W282-81		Bkgd Assy, White	1	Appelez-nous	-
9	3807F349-51		Support, Bkgd End Rt	1	Appelez-nous	-
9	3807F348-51		Support, Bkgd End Lf	1	Appelez-nous	-
9	WPW10068250		Screw   (Replaces: 7101P074-60)	1			$ 3.66
9	WP7101P126-60		Screw   (Replaces: 7101P058-60)	1		Immediately	$ 6.85
10	7726P021-60		End Cap, Backguard (rt-chr)	1	Appelez-nous	-
10	7726P010-60		End Cap, Backguard (lt-chr)	1	Appelez-nous	-
11	4005F034-80		Cover, Bottom	1	Appelez-nous	-
12	WP59002061		Screw (6abx38-zn)   (Replaces: 7101P077-60)	1			$ 6.98
12	4005F071-80		Cover, Bkgd. Wire	1	Appelez-nous	-
13	W11233072		Screw (zinc)   (Replaces: 7101P041-60)	1		Immediately	$ 12.62

    View Diagram in Separate Window       Print Part List
