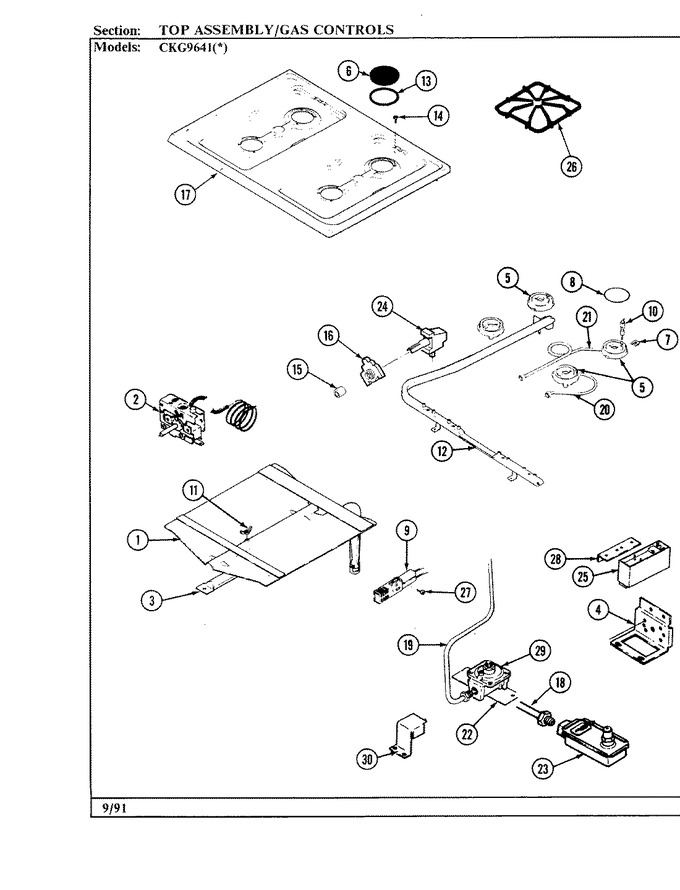

01 - Body
02 - Control Panel
03 - Controls
04 - Door/drawer
05 - Oven
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601F181-45 | Baffle, Oven Burner | 1 |
|
- | ||||
| 2 | 7404P062-60 | Thermostat, Oven | 1 |
|
- | ||||
| 2 | 7101P279-60 | Screw W/washer | 1 |
|
- | ||||
| 3 | 3403D027-45 | Burner, Oven | 1 |
|
- | ||||
| 4 | 3807F120-34 | Support | 1 |
|
- | ||||
| 5 | 5415A015-60 | + Nat. Gas Conversion Kit | 1 |
|
- | ||||
| 5 | 5111A095-60 | Wire Igniter | 1 |
|
- | ||||
| 5 | 5415A016-60 | Lp Conversion Kit | 1 |
|
- | ||||
| 5 | 7505P187-60 | Burner, Top | 1 |
|
- | ||||
| 5 | 5111A096-60 | Wire Igniter | 1 |
|
- | ||||
| 6 | 7504P009-60 | Cap, Burner (lt.gray) | 1 |
|
- | ||||
| 6 | 7504P007-60 | Cap, Surface Burner, Black | 1 |
|
- | ||||
| 7 | 7112P072-60 | Clip | 1 |
|
- | ||||
| 8 | 7201P037-60 | Gasket, Burner | 1 |
|
- | ||||
| 9 | 12400035 | Igniter, Oven (Replaces: 7432P067-60) | 1 |
|
Immediately | $ 60.44 | |||
| 10 | 7432P053-60 | Igniter, Burner | 1 |
|
- | ||||
| 11 | 7103P030-60 | Nut, Wing | 1 |
|
$ 6.37 | ||||
| 12 | 7513P104-60 | Pipe, Manifold | 1 |
|
- | ||||
| 13 | 2014F001-00 | Ring, Black | 1 |
|
- | ||||
| 14 | 7101P256-60 | Screw | 1 |
|
- | ||||
| 15 | 7214P003-60 | Sleeve | 1 |
|
- | ||||
| 16 | 7403P282-60 | Switch, Top Ignitor | 1 |
|
- | ||||
| 17 | 2001F063-81 | Top, Main White | 1 |
|
- | ||||
| 18 | 7506P098-60 | Tube, Regulator | 1 |
|
- | ||||
| 19 | 7506P100-60 | Tube, Manifold Feed | 1 |
|
- | ||||
| 20 | 7506P076-60 | Tube, Front Burner | 1 |
|
- | ||||
| 21 | 7506P077-60 | Tube, Rear Burner | 1 |
|
- | ||||
| 22 | 3801F191-45 | Bracket, Regulator Mtg | 1 |
|
- | ||||
| 23 | 7501P108-60 | Valve, Oven | 1 |
|
- | ||||
| 24 | 7502P229-60 | Valve | 1 |
|
- | ||||
| 24 | 7101P296-60 | Screw | 1 |
|
- | ||||
| 25 | 996530074415 | Spark Module (Replaces: 7431P020-60) | 1 |
|
$ 9.85 | ||||
| 26 | 2003W023-14 | Grate (gry) | 1 |
|
- | ||||
| 26 | 2003W023-00 | Grate (blk) | 1 |
|
- | ||||
| 27 | WP4159193 | Screw (10-24x5/16-ni) (Replaces: 7101P282-60) | 1 |
|
$ 4.29 | ||||
| 28 | 3801F226-45 | Bracket, Spark Module | 1 |
|
- | ||||
| 29 | 1555251 | Nut, Loxit (3/8``) | 1 |
|
- | ||||
| 29 | 7510P040-60 | Regulator | 1 |
|
- | ||||
| 30 | 4005F173-51 | Cover, Valve Terminal | 1 |
|
- |
