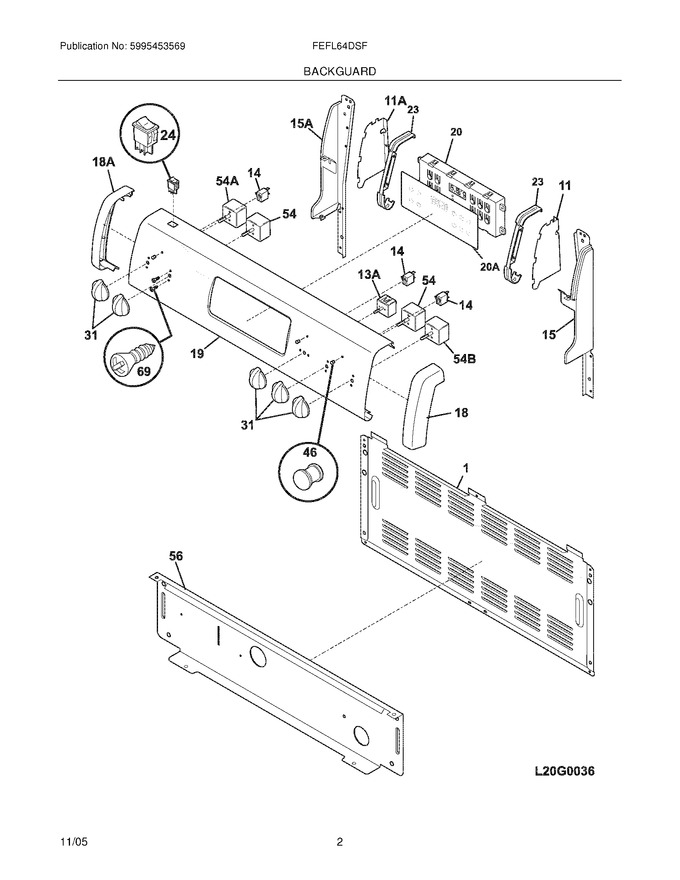

03 - Backguard


05 - Body


07 - Top/drawer


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316239900		Shield,backguard ,rear Wall				$ 93.03
11	316241000		Shield,end Cap ,rh		Appelez-nous	-
14	316022500		Light/lamp, Indicator, 125 V			Immediately	$ 53.57
15	316220214		Support,backguard ,white ,rh		Appelez-nous	-
18	316240900		End Cap,white ,rh				$ 49.09
19	316246626		Panel,backguard ,white		Appelez-nous	-
23	316245900		Bracket,clock Mtg		Appelez-nous	-
31	316223000		Knob,control ,white			Immediately	$ 72.80
46	316040201		Lens,indicator Light ,red		Appelez-nous	-
56	316234029		Shield,backguard ,white ,inner   (Replaces: 316234012)				$ 87.17
69	5303288565		Screw,truss Sqdr `8-32 X 3/16 ,switch Mtg				$ 3.12
11A	A2563116G		Shield,end Cap ,lh   (Replaces: 316241001)		Appelez-nous	-
13A	5304508926		Switch,infinite ,warmer   (Replaces: 316095502)			Immediately	$ 84.18
15A	316220215		Support,backguard ,white ,lh				$ 86.05
18A	316240901		End Cap,white ,lh				$ 45.62
20A	316419137		Overlay,clock ,white ,es300   (Replaces: 316419104)			Immediately	$ 31.34
24No.	5304527842		Switch,rocker ,white ,oven Light   (Replaces: 316448701)			Immediately	$ 16.13
F20	5304509493		Clock/timer,electronic ,es300   (Replaces: 316418200)			Immediately	$ 212.37
F54	5303935086		Switch,infinite ,small Element   (Replaces: 316021500)			Immediately	$ 51.95
F54A	316436001		Switch,infinite ,large Element   (Replaces: 316021501)			Immediately	$ 51.68
F54B	316238201		Switch,infinite ,dual Element   (Replaces: 316238200)			Immediately	$ 89.00
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
