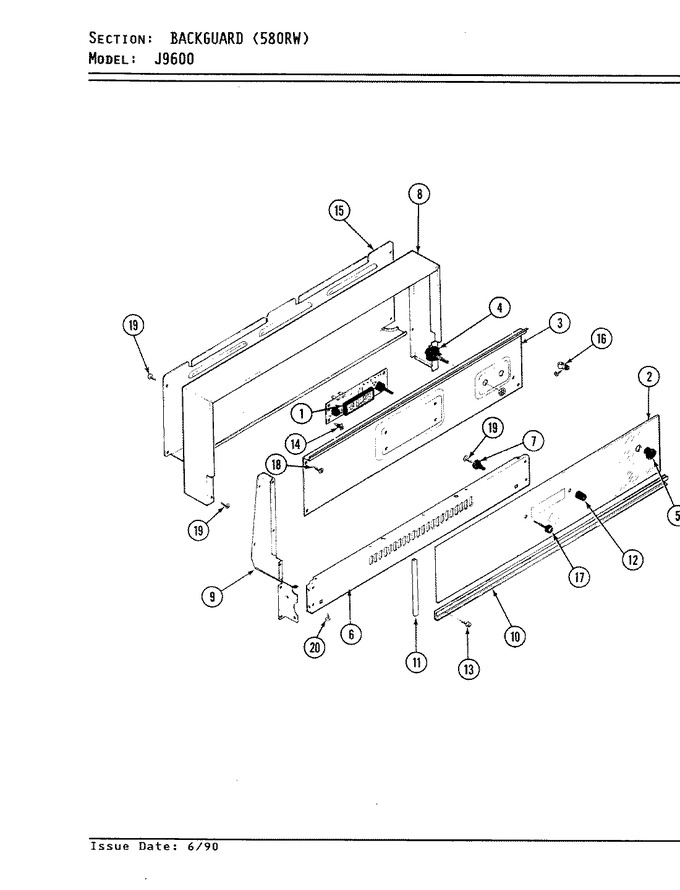

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7602P095-60 | Clock | 1 |
|
- | ||||
| 1 | WP8312P015-60 | Shaft, Bit Generator (Replaces: 8312P015-60) | 1 |
|
$ 0.81 | ||||
| 1 | 7401P013-60 | Block, Disconnect | 1 |
|
- | ||||
| 2 | 7910P088-60 | Glass Bkgd | 1 |
|
- | ||||
| 3 | 3807F385-51 | Support, Clock | 1 |
|
- | ||||
| 4 | 7403P109-60 | Switch, Push (blk) | 1 |
|
- | ||||
| 5 | 7214P007-60 | Sleeve, Switch (blk) | 1 |
|
- | ||||
| 6 | 2620W044-90 | Panel, Bkgd. Lwr (black) | 1 |
|
- | ||||
| 7 | 8010P069-60 | Spacer, Hinge (main Top) | 1 |
|
$ 8.57 | ||||
| 8 | 4005F073-80 | Cover, Bottom Bkgd Wire | 1 |
|
- | ||||
| 8 | 3603F026-70 | Frame Bkgd | 1 |
|
- | ||||
| 9 | 3807F341-51 | Support, Bkgd (right) | 1 |
|
- | ||||
| 9 | 3807F342-51 | Support, Backguard (left) | 1 |
|
- | ||||
| 10 | 7716P017-60 | Trim, Backguard Bottom | 1 |
|
- | ||||
| 11 | 7742P001-60 | Trim, Glass Retainer | 1 |
|
- | ||||
| 12 | 7711P172-60 | Knob, Clock (blk) | 1 |
|
$ 23.55 | ||||
| 13 | 7101P158-60 | Screw, Bkgd Trim Bottom | 1 |
|
- | ||||
| 14 | 8010P037-60 | Fastener, Spacer | 1 |
|
- | ||||
| 15 | 4005F213-51 | Cover, Bkgd Wires | 1 |
|
- | ||||
| 16 | 7111P015-60 | Clamp, Wire | 1 |
|
- | ||||
| 17 | 7711P171-60 | Knob, Clock (button-blk) | 1 |
|
$ 19.90 | ||||
| 18 | 7101P163-60 | Screw, No.6 X3/8 | 1 |
|
- | ||||
| 19 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 1 |
|
Immediately | $ 12.62 | |||
| 20 | W11233072 | Screw (Replaces: 7101P147-60) | 1 |
|
Immediately | $ 12.62 |
