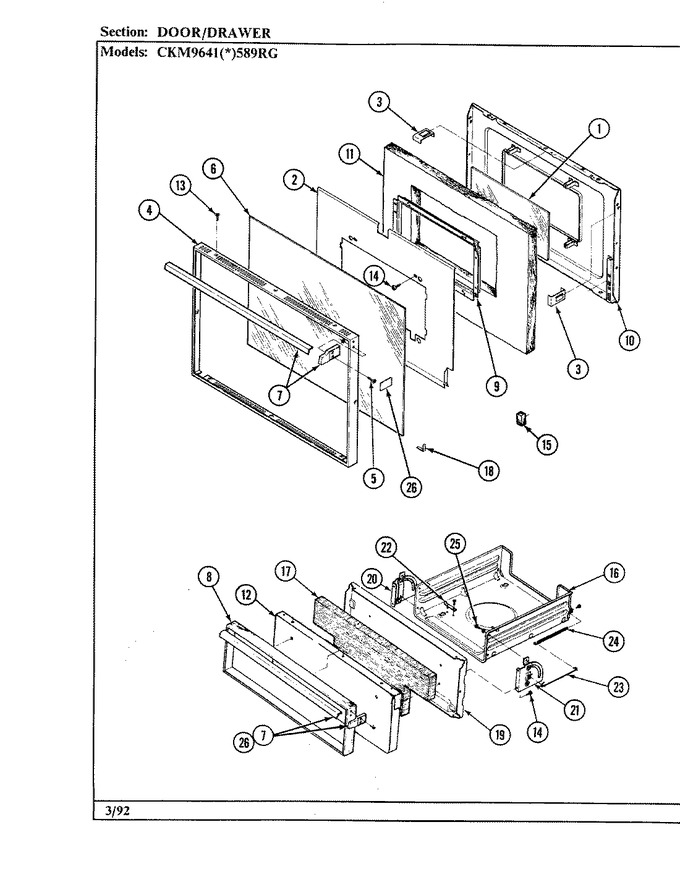

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7902P035-60		Glass, Door Inner	01	Appelez-nous	-
2	3601F094-51		Baffle, Oven Door	01	Appelez-nous	-
3	7112P034-60		Clip, Door	01	Appelez-nous	-
4	7706P243-60		Frame, Door	01	Appelez-nous	-
5	7101P305-60		Screw	01	Appelez-nous	-
6	7902P285-60		Glass, Door White	01	Appelez-nous	-
7	7701P031-60		Handle, Door White	01	Appelez-nous	-
8	7706P182-60		Frame, Brl Dr	01	Appelez-nous	-
8	74002481		Screw, Handle   (Replaces: 7101P283-60)	01			$ 5.82
9	3603F013-80		Frame, Window----na	01	Appelez-nous	-
10	2402W154-19		Lining, Oven Door	01	Appelez-nous	-
11	4804F021-60		Insulation, Door	01	Appelez-nous	-
12	2403F014-71		Panel Broiler Dr Wht	01	Appelez-nous	-
13	WP7101P126-60		Screw, Frame   (Replaces: 7101P126-60)	01		Immediately	$ 6.85
14	WP7101P126-60		Screw   (Replaces: 7101P061-60)	01		Immediately	$ 6.85
15	WP854334		Seal, Rubber   (Replaces: 7208P011-60)	01			$ 11.95
16	7103P067-60		Lock Nut, Catch	01	Appelez-nous	-
16	3407W009-19		Broiler Drawer Assy.	01	Appelez-nous	-
16	WP74004005		Screw   (Replaces: 7101P076-60)	01			$ 6.95
17	7002P002-60		Insulation	01	Appelez-nous	-
18	8010P045-60		Spacer, Glass Corner	01	Appelez-nous	-
19	2404F021-19		Lining, Broiler Drawer	01	Appelez-nous	-
19	WP7101P126-60		Screw   (Replaces: 7101P058-60)	01		Immediately	$ 6.85
20	3418A063-34		Hinge, Broiler (lt)	01	Appelez-nous	-
21	3418A062-34		Hinge, Broiler (rt)	01	Appelez-nous	-
22	8002P001-60		Catch	01	Appelez-nous	-
23	7807P001-60		Link, Broiler	01	Appelez-nous	-
24	7803P014-60		Spring	01	Appelez-nous	-
25	7101P114-60		Screw	01	Appelez-nous	-
26	7728P068-60		Insert, Handle (chrome)	01	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
