01 - Burner Box

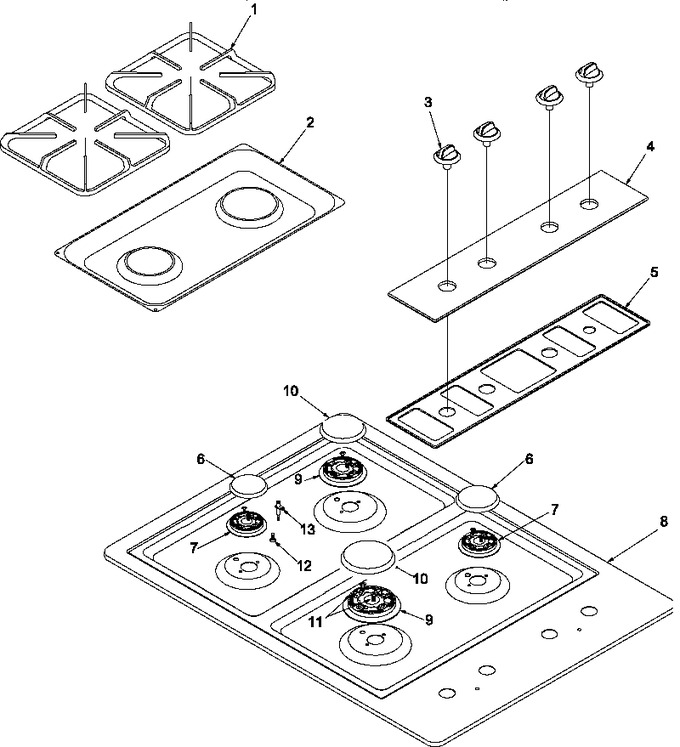

02 - Main Top
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 315979SY | Grate Single(gray) |
|
- | |||||
| 2 | 315600W | Bowl,burner-dblxxsubs To Blkx |
|
- | |||||
| 3 | 315651T | Knob, Top Burner |
|
- | |||||
| 4 | 315650W | Glass, Cont Pnl (white) |
|
- | |||||
| 5 | 316399W | Frame-control Pnl Glass (wht) |
|
- | |||||
| 6 | 315765SY | Cap, Burner 9k (speckle Grey) |
|
- | |||||
| 7 | WPY0315768 | Top Burner (medium 9k) (Replaces: Y0315768) |
|
$ 128.48 | |||||
| 8 | 315524W | Maintop, 30``gas (white) |
|
- | |||||
| 9 | Y0315767 | Top Burner (large 12/13k) |
|
- | |||||
| 10 | 315764SY | Cap, Burner 12/13k (spkle Gry) |
|
- | |||||
| 11 | WPY04100059 | Screw, No.6-20 X .750 Pan Hd Ph (Replaces: Y0316761) |
|
$ 6.96 | |||||
| 12 | Y0316775 | Screw, Electrode |
|
- | |||||
| 13 | WPY0316773 | Electrode, Spark Ignition (Replaces: Y0316773) |
|
Immediately | $ 37.13 |
