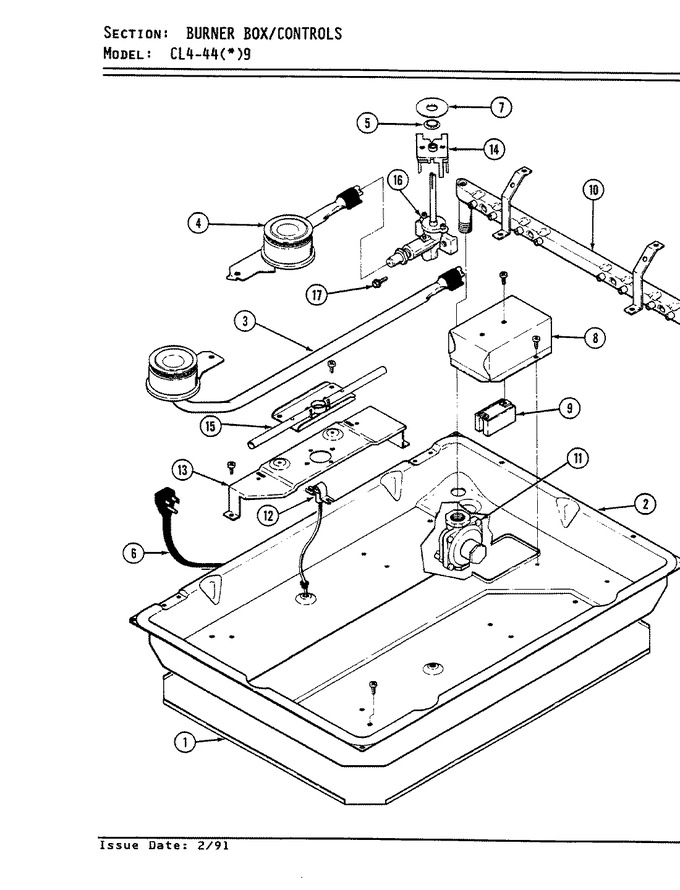

01 - Controls (cl4-44x9)
02 - Top Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601F185-51 | Baffle, Bottom |
|
- | |||||
| 2 | 4011F141-23 | Bottom, Burner Box |
|
- | |||||
| 3 | 7505P160-60 | Burner, Top Left |
|
- | |||||
| 4 | WP4159193 | Screw (Replaces: 7118P004-60) |
|
$ 4.29 | |||||
| 4 | 7505P161-60 | Burner, Top Right |
|
- | |||||
| 5 | 7112P024-60 | Clip |
|
- | |||||
| 6 | 7402P013-60 | Cord, Power |
|
- | |||||
| 7 | 7724P004-60 | Cover, Burner Valve |
|
- | |||||
| 8 | 4005F109-80 | Cover, Transformer |
|
- | |||||
| 9 | 7431P006-60 | Module, Spark |
|
- | |||||
| 10 | 7513P060-60 | Pipe, Manifold |
|
- | |||||
| 11 | 7510P002-60 | Regulator, Pressure |
|
- | |||||
| 12 | 7432P010-60 | Igniter |
|
- | |||||
| 13 | 3807F101-51 | Support |
|
- | |||||
| 14 | WP7403P190-60 | Switch, Burner (Replaces: 7403P190-60) |
|
$ 118.82 | |||||
| 15 | 7506P016-60 | Tube, Flash |
|
- | |||||
| 16 | 7502P121-60 | Valve, Hi-med-lo |
|
- | |||||
| 17 | 7101P043-60 | Screw, Control Valve |
|
- |
