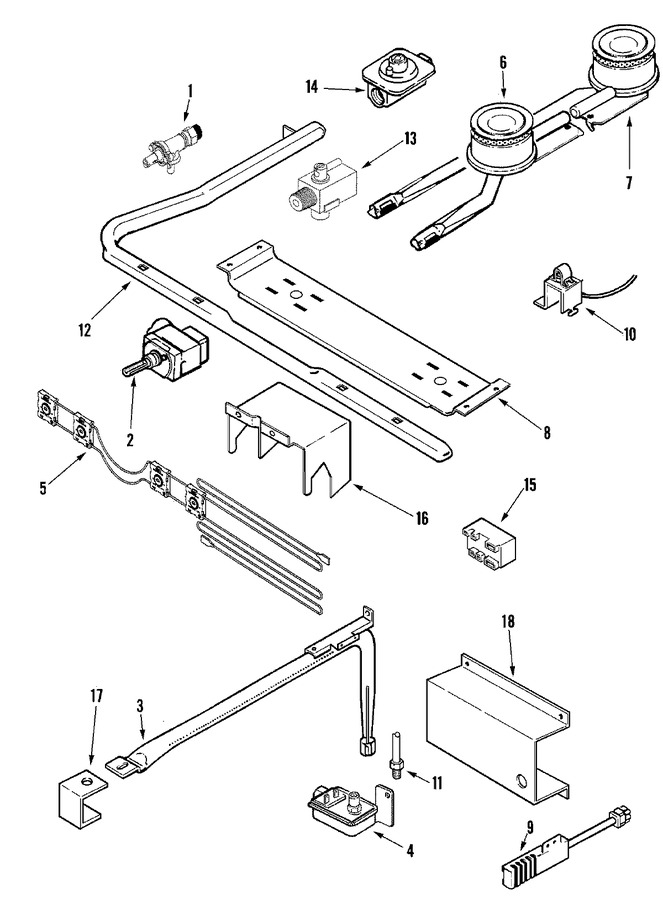

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74009416		Screw	10	Appelez-nous	-
1	74011029		Valve, Top Burner (lp)	10	Appelez-nous	-
1	W10202714		Valve, Top Burner	17	Appelez-nous	-
2	WP7101P309-60		Screw   (Replaces: 7101P309-60)	10		Immediately	$ 6.26
2	WP74002390		Thermostat   (Replaces: 74002390)	10		Immediately	$ 204.81
3	3403D048-45		Burner, Oven	10	Appelez-nous	-
4	74011016		Valve, Safety (lp)	10	Appelez-nous	-
5	W10153168		Swtch-ignr	17	Appelez-nous	-
5	74009415		Switch, Spark Ignitor Assy.	10	Appelez-nous	-
5	WP7101P126-60		Screw   (Replaces: 7101P356-60)	10		Immediately	$ 6.85
6	WP7101P126-60		Screw   (Replaces: 7101P356-60)	10		Immediately	$ 6.85
6	74010145		Burner, Top (frt)	10	Appelez-nous	-
7	WP7101P126-60		Screw   (Replaces: 7101P356-60)	10		Immediately	$ 6.85
7	W11218700		Burner, Top (rear)   (Replaces: 74010146)	10	Appelez-nous	-
8	74010147		Support, Top Burner	10	Appelez-nous	-
9	74007498		Igniter, Oven	10		Immediately	$ 78.40
10	74004468		Igniter, Top Burner (lt)	10	Appelez-nous	-
10	74004467		Igniter, Top Burner (rt)	10	Appelez-nous	-
11	74006867		Tubing, Oven (3/8``)	10	Appelez-nous	-
12	74003309		Pipe, Manifold	10	Appelez-nous	-
13	74005561		Valve, Shut Off	10	Appelez-nous	-
14	74010540		Regulator, Pressure (rv)	10	Appelez-nous	-
14	74006282		Regulator, Pressure	10	Appelez-nous	-
15	74004282		Module, Spark (2+0)	10			$ 195.66
15	74009584		Cover, Spark Module	10	Appelez-nous	-
16	74003310		Cover, Thermostat	10	Appelez-nous	-
17	3807F336-51		Support, Burner	10	Appelez-nous	-
18	3807F369-45		Support, Oven Valve	10	Appelez-nous	-
