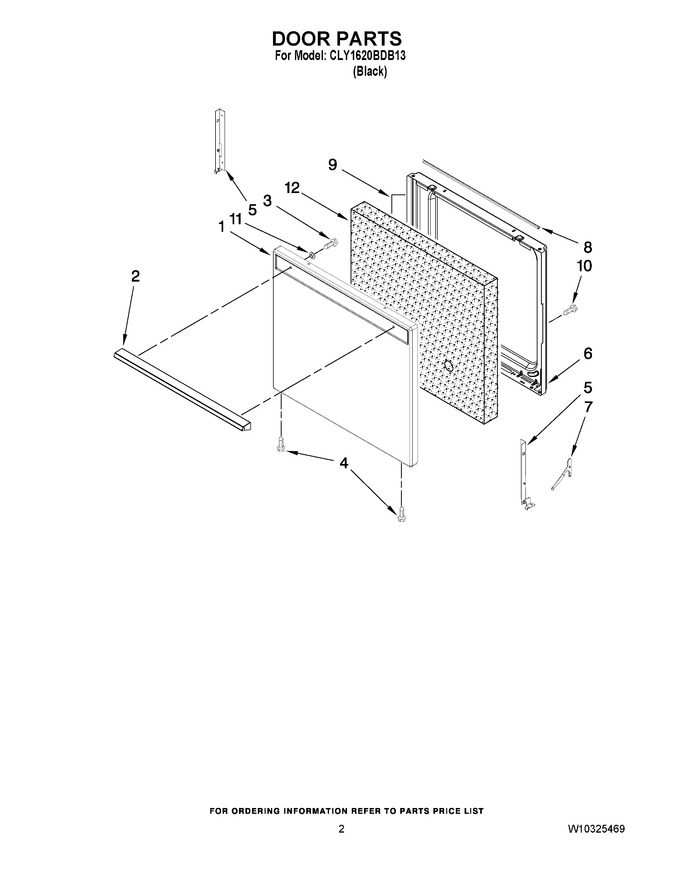

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2401F126-70		Panel, Door		Appelez-nous	-
2	2411F011-70		Handle, Door				$ 61.64
3	WP74005233		Screw   (Replaces: 7101P520-60)				$ 6.78
4	WP98008545		Screw   (Replaces: 7101P633-60)				$ 15.94
5	3418D091-34		Hinge, Door (left)		Appelez-nous	-
5	3418D092-34		Hinge, Door (right)		Appelez-nous	-
6	2402F272-19		Lining, Door		Appelez-nous	-
7	3423F001-34		Arm, Spring				$ 7.41
8	7212P014-60		Seal, Door (top)				$ 48.10
9	7212P038-60		Seal, Door (sides)		Appelez-nous	-
10	WP74003976		Screw   (Replaces: 7101P500-60)				$ 6.47
11	8010P136-60		Spacer, Handle		Appelez-nous	-
12	7002P428-60		Insulation, Door		Appelez-nous	-
