SELECT A DIAGRAM

Diagram for 01 - Cooktop Parts
01 - Cooktop Parts

Diagram for 02 - Door Parts
02 - Door Parts

Diagram for 03 - Manifold Parts
03 - Manifold Parts

Diagram for 04 - Chassis Parts
04 - Chassis Parts

Diagram for 05 - Optional Parts (not Included)
05 - Optional Parts (not Included)


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 8110P274-60 Use & Care Guide Appelez-nous -
1 W10065852 Safer Cooking Tips Appelez-nous -
1 8101P573-60 Instructions Installation Appelez-nous -
2 2001F302-09 Cooktop Special Order $ 162.68

3 2616F316-70 Panel, Manifold Appelez-nous -
4 74003942 Knob, Burner (3) (front)   (Replaces: 7733P199-60) Special Order $ 17.80

4 7733P200-60 Knob, Burner (3) (lr, Rr) Appelez-nous -
5 WP7731P182-60 Knob, Oven   (Replaces: 7731P182-60) Special Order $ 6.47

6 7518P418-60 Grate, Burner Special Order $ 27.99

7 74003944 Knob, Ignitor   (Replaces: 7739P117-60) In-Stock Immediately $ 15.89

8 WPW10308285 Bushing, Grate   (Replaces: W10308285) Special Order $ 6.98

9 WP7515P046-60 Thermostat   (Replaces: 7515P046-60) Special Order $ 269.95

10 WP74009857 Screw   (Replaces: 7101P651-60) Special Order $ 4.95

11 8003P008-60 Bumper Appelez-nous -
12 7101P229-60 Screw Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

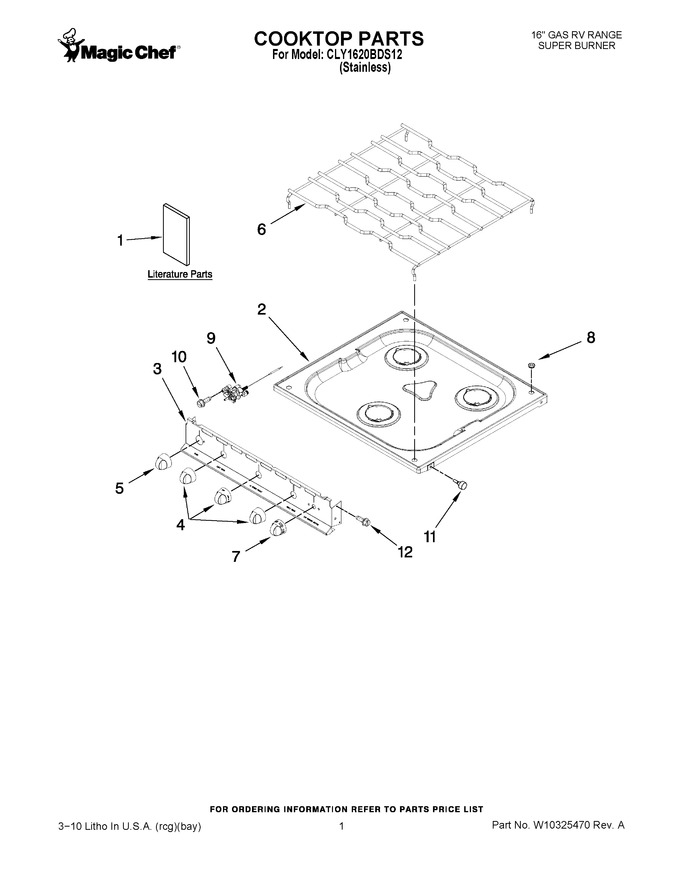

Diagram for CLY1620BDS12
